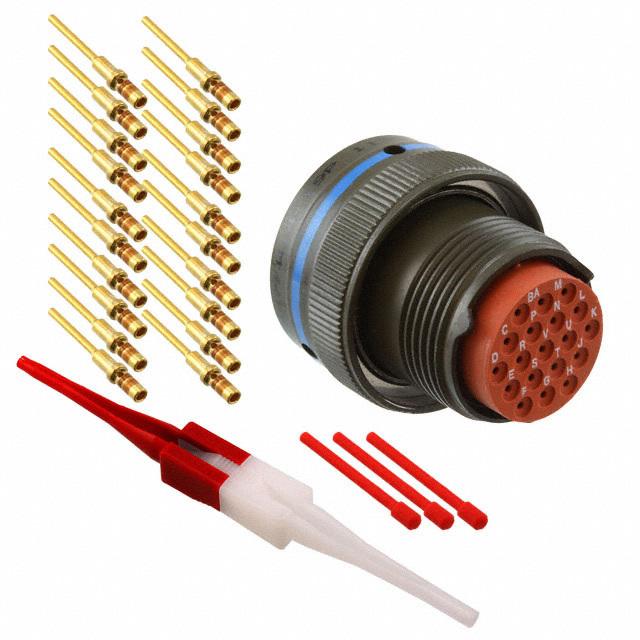

MS3476W14-19P
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MS3476W14-19P with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MS3476W14-19P with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MS3476W14-19P |
|---|---|
| Manufacturer | Amphenol Aerospace Operations |
| Description | CONN PLUG MALE 19POS CRIMP |
| Lead Free Status / RoHS Status | Lead free / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 5 pcs | 10 pcs | 25 pcs | |
|---|---|---|---|---|---|
| $20.326 | $17.843 | $17.383 | $16.279 | ||
| 50 pcs | 100 pcs | 250 pcs | |||
| $15.175 | $13.428 | $12.508 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | MS3476W14-19P | Manufacturer | Amphenol Aerospace Operations |
|---|---|---|---|
| Description | CONN PLUG MALE 19POS CRIMP | Lead Free Status / RoHS Status | Lead free / RoHS non-compliant |
| Quantity Available | 2642 pcs | Data sheet | MIL-C-26482, Series 2 Catalog |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Crimp | Shielding | Shielded |
| Shell Size, MIL | - | Shell Size - Insert | 14-19 |
| Shell Material | Aluminum | Shell Finish | Olive Drab Cadmium |
| Series | Military, MIL-DTL-26482 Series II | Packaging | Bulk |
| Other Names | 1069-1000 1069-1000-MIL AMS3476W14-19P-ND MS3476W14-19P-MIL MS347W1419P |
Orientation | N (Normal) |
| Operating Temperature | -65°C ~ 200°C | Number of Positions | 19 |
| Mounting Type | Free Hanging (In-Line) | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS non-compliant |
| Insert Material | - | Ingress Protection | Environment Resistant |
| Features | Coupling Nut, Ground | Fastening Type | Bayonet Lock |
| Detailed Description | 19 Position Circular Connector Plug, Male Pins Crimp | Current Rating | - |
| Contact Material | Copper Alloy | Contact Finish Thickness - Mating | 50.0µin (1.27µm) |
| Contact Finish - Mating | Gold | Connector Type | Plug, Male Pins |
| Color | Olive Drab | Cable Opening | - |
| Backshell Material, Plating | - | Applications | Aviation, Industrial, Instrumentation, Marine, Military, Testing Equipment |
