MS3456W22-2P

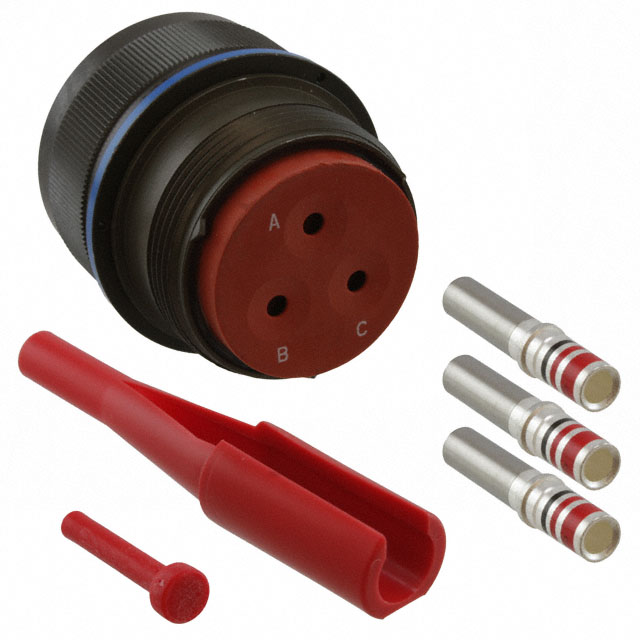

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MS3456W22-2P with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MS3456W22-2P with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MS3456W22-2P |
|---|---|
| Manufacturer | Amphenol Aerospace Operations |
| Description | CONN PLUG MALE 3POS GOLD CRIMP |
| Lead Free Status / RoHS Status | Lead free / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 5 pcs | 10 pcs | ||
|---|---|---|---|---|---|
| $27.001 | $23.671 | $22.685 | |||
| 25 pcs | 50 pcs | 100 pcs | |||
| $21.082 | $19.356 | $17.753 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | MS3456W22-2P | Manufacturer | Amphenol Aerospace Operations |
|---|---|---|---|
| Description | CONN PLUG MALE 3POS GOLD CRIMP | Lead Free Status / RoHS Status | Lead free / RoHS non-compliant |
| Quantity Available | 2087 pcs | Data sheet | MIL-DTL-5015 Matrix® Series Catalog |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Crimp | Shielding | Unshielded |
| Shell Size, MIL | - | Shell Size - Insert | 22-2 |
| Shell Material | Aluminum | Shell Finish | Olive Drab Cadmium |
| Series | Military, MIL-DTL-5015 | Packaging | Bulk |
| Other Names | 1069-1014 1069-1014-MIL 3456W222P AMS3456W22-2P-ND MS3456W22-2P-MIL MS3456W222P |
Orientation | N (Normal) |
| Operating Temperature | -55°C ~ 175°C | Number of Positions | 3 |
| Mounting Type | Free Hanging (In-Line) | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS non-compliant |
| Insert Material | - | Ingress Protection | Fluid Resistant |
| Features | Coupling Nut | Fastening Type | Threaded |
| Detailed Description | 3 Position Circular Connector Plug, Male Pins Crimp Gold | Current Rating | - |
| Contact Material | Copper Alloy | Contact Finish Thickness - Mating | 50.0µin (1.27µm) |
| Contact Finish - Mating | Gold | Connector Type | Plug, Male Pins |
| Color | Olive Drab | Cable Opening | - |
| Backshell Material, Plating | - | Applications | Aviation, Automotive, Military |
