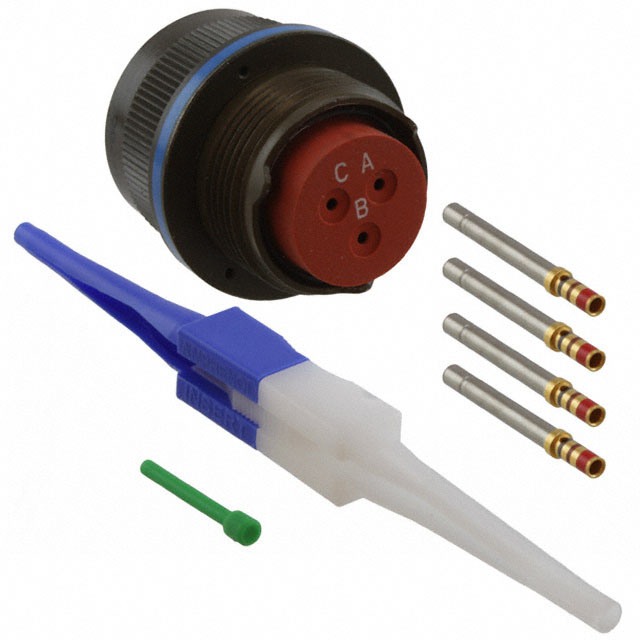

MS3456W14S-7S
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MS3456W14S-7S with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MS3456W14S-7S with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MS3456W14S-7S |
|---|---|
| Manufacturer | Amphenol Aerospace Operations |
| Description | CONN PLUG FMALE 3POS GOLD CRIMP |
| Lead Free Status / RoHS Status | Lead free / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 5 pcs | 10 pcs | 25 pcs | |
|---|---|---|---|---|---|
| $18.883 | $16.576 | $16.148 | $15.123 | ||
| 50 pcs | 100 pcs | 250 pcs | |||
| $14.098 | $12.475 | $11.62 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | MS3456W14S-7S | Manufacturer | Amphenol Aerospace Operations |
|---|---|---|---|
| Description | CONN PLUG FMALE 3POS GOLD CRIMP | Lead Free Status / RoHS Status | Lead free / RoHS non-compliant |
| Quantity Available | 2961 pcs | Data sheet | MIL-DTL-5015 Matrix® Series Catalog |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Crimp | Shielding | Unshielded |
| Shell Size, MIL | - | Shell Size - Insert | 14S-7 |
| Shell Material | Aluminum | Shell Finish | Olive Drab Cadmium |
| Series | Military, MIL-DTL-5015 | Packaging | Bulk |
| Other Names | 1069-1022 1069-1022-MIL 3456W14S7S AMS3456W14S-7S-ND MS3456W14S-7S-MIL MS3456W14S7S |
Orientation | N (Normal) |
| Operating Temperature | -55°C ~ 175°C | Number of Positions | 3 |
| Mounting Type | Free Hanging (In-Line) | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS non-compliant |
| Insert Material | - | Ingress Protection | Fluid Resistant |
| Features | Coupling Nut | Fastening Type | Threaded |
| Detailed Description | 3 Position Circular Connector Plug, Female Sockets Crimp Gold | Current Rating | - |
| Contact Material | Copper Alloy | Contact Finish Thickness - Mating | 50.0µin (1.27µm) |
| Contact Finish - Mating | Gold | Connector Type | Plug, Female Sockets |
| Color | Olive Drab | Cable Opening | - |
| Backshell Material, Plating | - | Applications | Aviation, Automotive, Military |
