D38999/26WC35PNLC

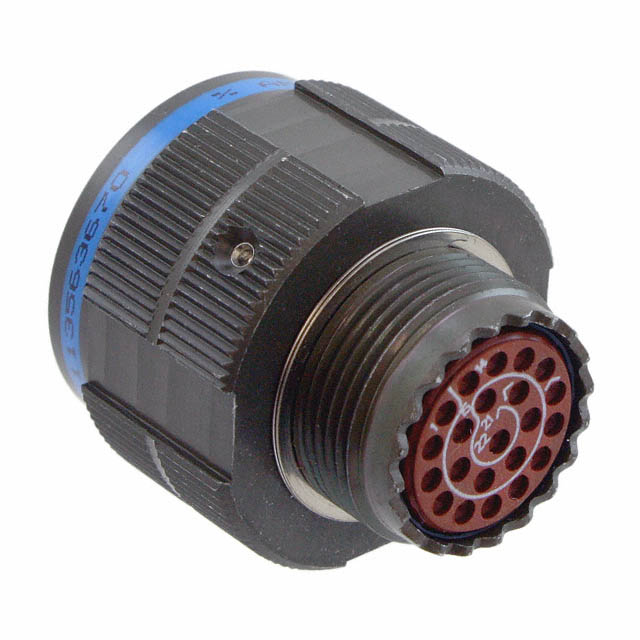

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy D38999/26WC35PNLC with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy D38999/26WC35PNLC with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | D38999/26WC35PNLC |
|---|---|
| Manufacturer | Amphenol Aerospace Operations |
| Description | CONN PLUG HSG MALE 22POS INLINE |
| Lead Free Status / RoHS Status | Lead free / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 5 pcs | 10 pcs | 25 pcs | |
|---|---|---|---|---|---|
| $16.205 | $14.17 | $13.806 | $13.007 | ||
| 50 pcs | 100 pcs | 250 pcs | |||
| $12.135 | $10.754 | $10.173 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | D38999/26WC35PNLC | Manufacturer | Amphenol Aerospace Operations |
|---|---|---|---|
| Description | CONN PLUG HSG MALE 22POS INLINE | Lead Free Status / RoHS Status | Lead free / RoHS non-compliant |
| Quantity Available | 3570 pcs | Data sheet | MIL-DTL-38999 Catalog |
| Category | Connectors, Interconnects | Type | For Male Pins |
| Shielding | Shielded | Shell Size, MIL | C |
| Shell Size - Insert | 13-35 | Shell Material | Aluminum |
| Shell Finish | Cadmium | Series | Military, MIL-DTL-38999 Series III, Tri-Start™ TV |
| Packaging | Bulk | Other Names | 1069-1052 1069-1052-MIL AD38999/26WC35PNLC-ND D38999/26WC35PNLC-MIL D3899926WC35PNLC |
| Orientation | N (Normal) | Operating Temperature | -65°C ~ 175°C |
| Number of Positions | 22 | Note | Contacts Not Included |
| Mounting Type | Free Hanging (In-Line) | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS non-compliant |
| Insert Material | - | Ingress Protection | Environment Resistant |
| Includes | - | Housing Color | Olive Drab |
| Features | Coupling Nut, Self Locking | Fastening Type | Threaded |
| Detailed Description | 22 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut, Self Locking | Coupling Nut Material, Plating | Aluminum, Olive Drab Cadmium |
| Coupling Nut Diameter | 1.157" (29.39mm) | Contact Type | Crimp |
| Contact Size | 22D | Contact Shape | Circular |
| Connector Type | Plug Housing |
