D38999/26WC35PN

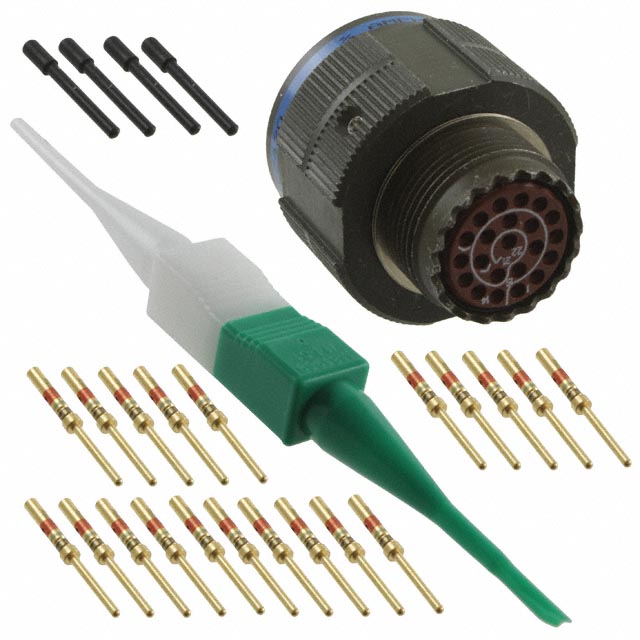

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy D38999/26WC35PN with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy D38999/26WC35PN with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | D38999/26WC35PN |
|---|---|
| Manufacturer | Amphenol Aerospace Operations |
| Description | CONN PLUG MALE 22POS GOLD CRIMP |
| Lead Free Status / RoHS Status | Lead free / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 5 pcs | 10 pcs | 25 pcs | |
|---|---|---|---|---|---|
| $17.922 | $15.733 | $15.328 | $14.355 | ||
| 50 pcs | 100 pcs | 250 pcs | |||
| $13.381 | $11.841 | $11.03 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | D38999/26WC35PN | Manufacturer | Amphenol Aerospace Operations |
|---|---|---|---|
| Description | CONN PLUG MALE 22POS GOLD CRIMP | Lead Free Status / RoHS Status | Lead free / RoHS non-compliant |
| Quantity Available | 3055 pcs | Data sheet | MIL-DTL-38999 Catalog |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Crimp | Shielding | Shielded |
| Shell Size, MIL | C | Shell Size - Insert | 13-35 |
| Shell Material | Aluminum | Shell Finish | Olive Drab Cadmium |
| Series | Military, MIL-DTL-38999 Series III, Tri-Start™ TV | Packaging | Bulk |
| Other Names | 1069-1053 1069-1053-MIL 88-552043-35P AD38999/26WC35PN-ND D38999/26WC35PN-MIL |
Orientation | N (Normal) |
| Operating Temperature | -65°C ~ 175°C | Number of Positions | 22 |
| Mounting Type | Free Hanging (In-Line) | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS non-compliant |
| Insert Material | Thermoplastic | Ingress Protection | Environment Resistant |
| Features | Coupling Nut, Self Locking | Fastening Type | Threaded |
| Detailed Description | 22 Position Circular Connector Plug, Male Pins Crimp Gold | Current Rating | - |
| Contact Material | Copper Alloy | Contact Finish Thickness - Mating | 50.0µin (1.27µm) |
| Contact Finish - Mating | Gold | Connector Type | Plug, Male Pins |
| Color | Olive Drab | Cable Opening | - |
| Backshell Material, Plating | - | Applications | Aviation, Marine, Military |
