506WLSN6R00KT236T

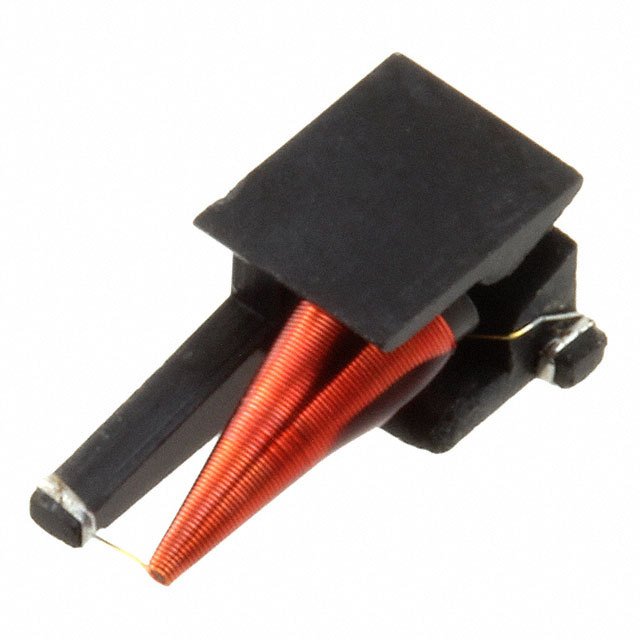

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 506WLSN6R00KT236T with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 506WLSN6R00KT236T with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 506WLSN6R00KT236T |
|---|---|
| Manufacturer | American Technical Ceramics |
| Description | FIXED IND 6UH 236MA 2.8 OHM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 100 pcs | ||||
|---|---|---|---|---|---|
| $7.398 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 506WLSN6R00KT236T | Manufacturer | American Technical Ceramics |
|---|---|---|---|
| Description | FIXED IND 6UH 236MA 2.8 OHM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4912 pcs | Data sheet | 506WLSN6R00KT236T |
| Category | Inductors, Coils, Chokes | Type | Wirewound |
| Tolerance | ±10% | Supplier Device Package | - |
| Size / Dimension | 0.127" L x 0.080" W (3.23mm x 2.03mm) | Shielding | Unshielded |
| Series | 506WLS | Ratings | - |
| Q @ Freq | - | Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard | Other Names | 1284-1323-2 ATC506WLSN6R00KT236T |
| Operating Temperature | -55°C ~ 125°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | Iron Powder |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 1MHz | Inductance | 6µH |
| Height - Seated (Max) | 0.105" (2.67mm) | Frequency - Self Resonant | - |
| Detailed Description | 6µH Unshielded Wirewound Inductor 236mA 2.8 Ohm Nonstandard | DC Resistance (DCR) | 2.8 Ohm |
| Current Rating | 236mA | Current - Saturation | - |
