100C470JW2500XT

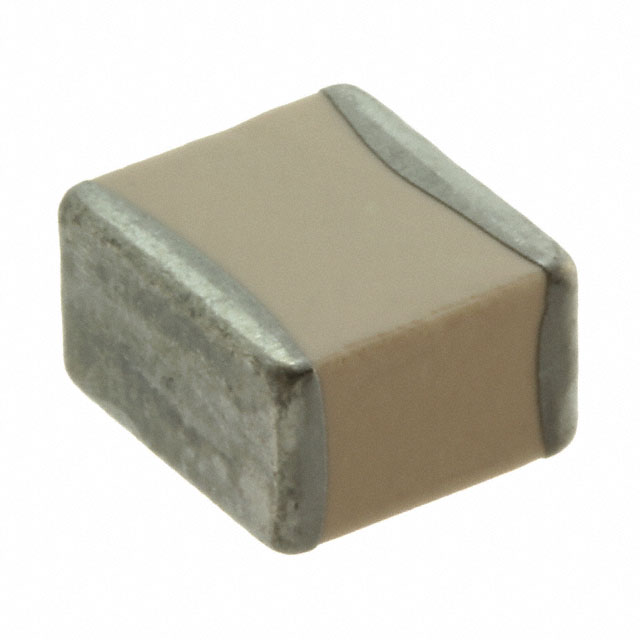

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 100C470JW2500XT with confidence from Components-World.HK, 1 Year Warranty
Dowload 100C470JW2500XT Details in PDFSee Product Specifications for product details.
Buy 100C470JW2500XT with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 100C470JW2500XT |
|---|---|
| Manufacturer | American Technical Ceramics |
| Description | CAP CER 47PF 2.5KV P90 2325 |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 500 pcs | ||||
|---|---|---|---|---|---|
| $3.159 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 100C470JW2500XT | Manufacturer | American Technical Ceramics |
|---|---|---|---|
| Description | CAP CER 47PF 2.5KV P90 2325 | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 11318 pcs | Data sheet | 100C Series Datasheet |
| Category | Capacitors | Voltage - Rated | 2500V (2.5kV) |
| Tolerance | ±5% | Thickness (Max) | 0.145" (3.68mm) |
| Temperature Coefficient | P90 | Size / Dimension | 0.230" L x 0.250" W (5.84mm x 6.35mm) |
| Series | ATC 100C | Ratings | - |
| Packaging | Tape & Reel (TR) | Package / Case | 2325 (5864 Metric) |
| Other Names | 100C470JW2500XT/250 ATC100C470JW2500XT |
Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Surface Mount, MLCC | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Style | - | Lead Spacing | - |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Height - Seated (Max) | - |
| Features | High Q, Low Loss, Low ESL, High Voltage | Detailed Description | 47pF ±5% 2500V (2.5kV) Ceramic Capacitor P90 2325 (5864 Metric) |
| Capacitance | 47pF | Applications | RF, Microwave, High Frequency, Bypass, Decoupling |
