EC2630QI

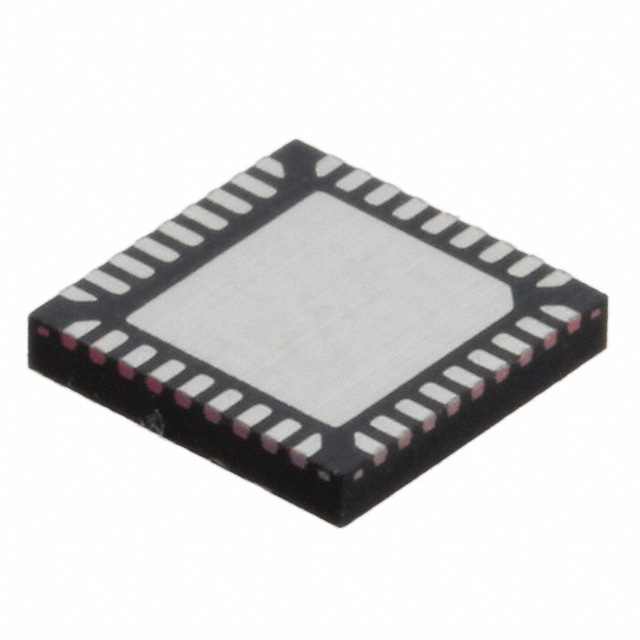

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EC2630QI with confidence from Components-World.HK, 1 Year Warranty
Dowload EC2630QI Details in PDFSee Product Specifications for product details.
Buy EC2630QI with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | EC2630QI |
|---|---|
| Manufacturer | Altera (Intel® Programmable Solutions Group) |
| Description | IC REG SWITCHD CAP VIN/2 36QFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1000 pcs | ||||
|---|---|---|---|---|---|
| $1.456 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | EC2630QI | Manufacturer | Altera (Intel® Programmable Solutions Group) |
|---|---|---|---|
| Description | IC REG SWITCHD CAP VIN/2 36QFN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 23474 pcs | Data sheet | EC2630QI |
| Category | Integrated Circuits (ICs) | Voltage - Output (Min/Fixed) | Vin/2 |
| Voltage - Output (Max) | - | Voltage - Input (Min) | 8V |
| Voltage - Input (Max) | 13.2V | Topology | Charge Pump |
| Synchronous Rectifier | Yes | Supplier Device Package | 36-QFN (5x6) |
| Series | Enpirion® | Packaging | Tape & Reel (TR) |
| Package / Case | 36-VFQFN Exposed Pad | Output Type | Fixed |
| Output Configuration | Positive | Other Names | 544-2844-2 |
| Operating Temperature | -40°C ~ 85°C (TA) | Number of Outputs | 1 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Manufacturer Standard Lead Time | 8 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Function | Ratiometric | Frequency - Switching | 115kHz |
| Detailed Description | Charge Pump Switching Regulator IC Positive Fixed Vin/2 1 Output 4.5A 36-VFQFN Exposed Pad | Current - Output | 4.5A |
