AOZ8075DI

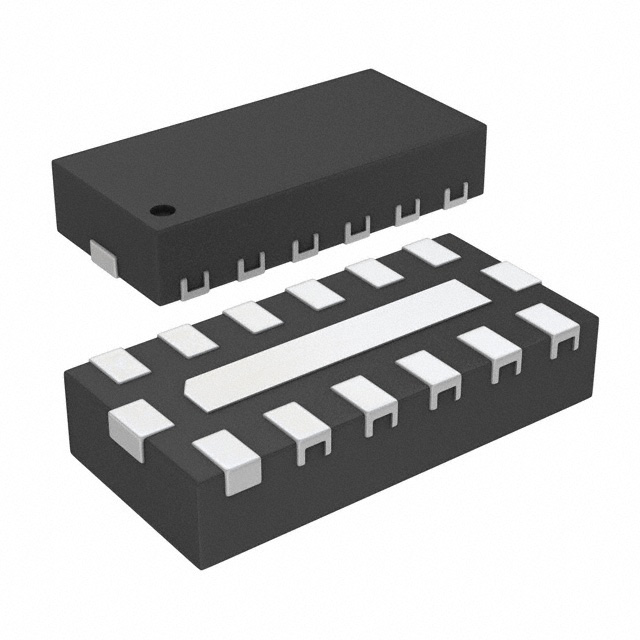

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AOZ8075DI with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy AOZ8075DI with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AOZ8075DI |
|---|---|
| Manufacturer | Alpha and Omega Semiconductor, Inc. |
| Description | FILTER RC(PI) 100 OHM/8PF SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | AOZ8075DI | Manufacturer | Alpha and Omega Semiconductor, Inc. |
|---|---|---|---|
| Description | FILTER RC(PI) 100 OHM/8PF SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5649 pcs | Data sheet | AOZ8075 |
| Category | Filters | Voltage - Rated | 5V |
| Values | R = 100 Ohms, C = 8pF | Type | Low Pass |
| Technology | RC (Pi) | Size / Dimension | 0.098" L x 0.047" W (2.50mm x 1.20mm) |
| Series | - | Resistance - Channel (Ohms) | 100 |
| Packaging | Tape & Reel (TR) | Package / Case | 12-UFDFN Exposed Pad |
| Operating Temperature | -40°C ~ 85°C | Number of Channels | 6 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height | 0.024" (0.60mm) |
| Filter Order | 2nd | ESD Protection | Yes |
| Detailed Description | RC (Pi) EMI Filter 2nd Order Low Pass 6 Channel R = 100 Ohms, C = 8pF 20mA 12-UFDFN Exposed Pad | Current | 20mA |
| Center / Cutoff Frequency | 220MHz (Cutoff) | Attenuation Value | -20dB @ 1GHz ~ 3GHz |
| Applications | Data Lines for Mobile Devices |
