AON7932_101

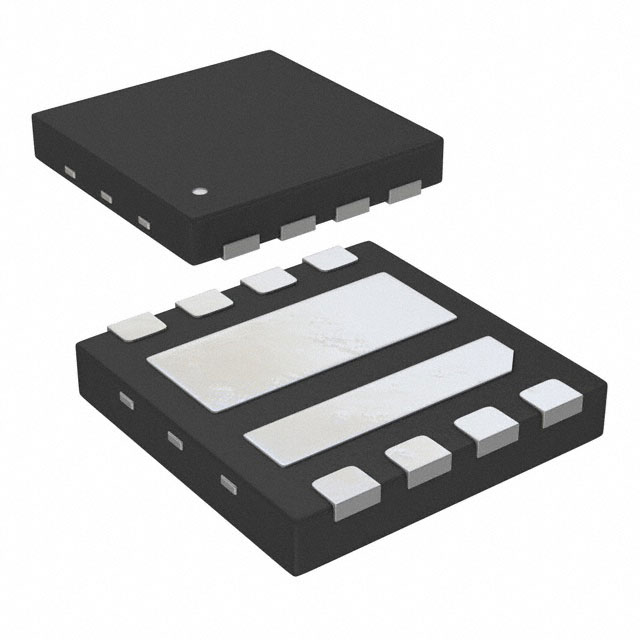

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AON7932_101 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy AON7932_101 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AON7932_101 |
|---|---|
| Manufacturer | Alpha and Omega Semiconductor, Inc. |
| Description | MOSFET 2N-CH 30V 6.6A/8.1A 8DFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | AON7932_101 | Manufacturer | Alpha and Omega Semiconductor, Inc. |
|---|---|---|---|
| Description | MOSFET 2N-CH 30V 6.6A/8.1A 8DFN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4797 pcs | Data sheet | AON7932 |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 2.4V @ 250µA |
| Supplier Device Package | 8-DFN (3x3) | Series | - |
| Rds On (Max) @ Id, Vgs | 20 mOhm @ 6.6A, 10V | Power - Max | 1.4W |
| Packaging | Bulk | Package / Case | 8-WDFN Exposed Pad |
| Operating Temperature | -55°C ~ 150°C (TJ) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 460pF @ 15V | Gate Charge (Qg) (Max) @ Vgs | 6.5nC @ 10V |
| FET Type | 2 N-Channel (Half Bridge) | FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 30V | Detailed Description | Mosfet Array 2 N-Channel (Half Bridge) 30V 6.6A, 8.1A 1.4W Surface Mount 8-DFN (3x3) |
| Current - Continuous Drain (Id) @ 25°C | 6.6A, 8.1A |
