AON6812

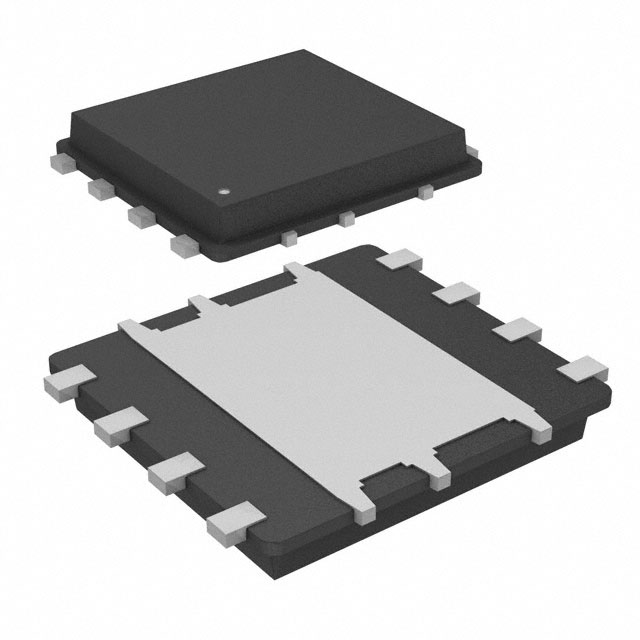

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AON6812 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy AON6812 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AON6812 |
|---|---|
| Manufacturer | Alpha and Omega Semiconductor, Inc. |
| Description | MOSFET 2N-CH 30V 27A 8-DFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3000 pcs | ||||
|---|---|---|---|---|---|
| $0.191 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | AON6812 | Manufacturer | Alpha and Omega Semiconductor, Inc. |
|---|---|---|---|
| Description | MOSFET 2N-CH 30V 27A 8-DFN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 104051 pcs | Data sheet | DFN5x6C-8L Pkg DrawingAON6812 |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 2.2V @ 250µA |
| Supplier Device Package | 8-DFN-EP (5.2x5.55) | Series | - |
| Rds On (Max) @ Id, Vgs | 4 mOhm @ 20A, 10V | Power - Max | 4.1W |
| Packaging | Tape & Reel (TR) | Package / Case | 8-SMD, Flat Lead Exposed Pad |
| Other Names | 785-1630-2 | Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 26 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 1720pF @ 15V | Gate Charge (Qg) (Max) @ Vgs | 34nC @ 10V |
| FET Type | 2 N-Channel (Dual) Common Drain | FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 30V | Detailed Description | Mosfet Array 2 N-Channel (Dual) Common Drain 30V 27A 4.1W Surface Mount 8-DFN-EP (5.2x5.55) |
| Current - Continuous Drain (Id) @ 25°C | 27A |
