AOB2618L

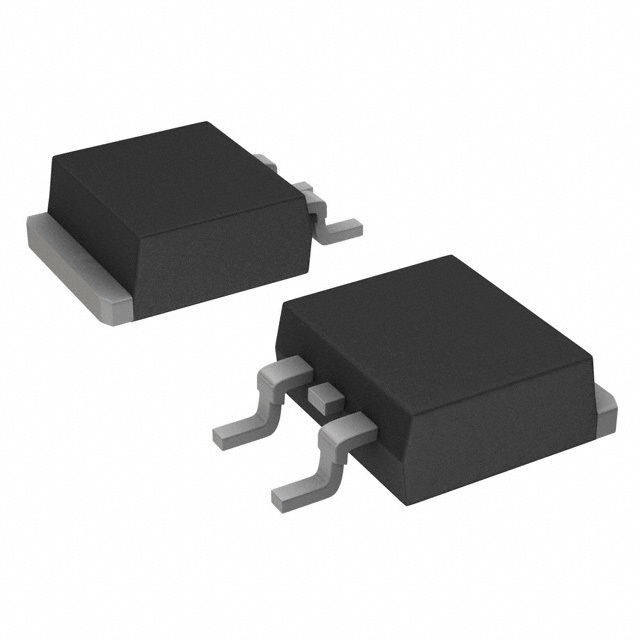

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AOB2618L with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy AOB2618L with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AOB2618L |
|---|---|
| Manufacturer | Alpha and Omega Semiconductor, Inc. |
| Description | MOSFET N-CH 60V 23A TO263 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | AOB2618L | Manufacturer | Alpha and Omega Semiconductor, Inc. |
|---|---|---|---|
| Description | MOSFET N-CH 60V 23A TO263 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5461 pcs | Data sheet | AOx2618LTO263 (D2PAK) Pkg Drawing |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Vgs (Max) | ±20V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | TO-263 (D²Pak) | Series | - |
| Rds On (Max) @ Id, Vgs | 19 mOhm @ 20A, 10V | Power Dissipation (Max) | 2.1W (Ta), 41.5W (Tc) |
| Packaging | Cut Tape (CT) | Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
| Other Names | 785-1471-1 | Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 950pF @ 30V |
| Gate Charge (Qg) (Max) @ Vgs | 20nC @ 10V | FET Type | N-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Drain to Source Voltage (Vdss) | 60V | Detailed Description | N-Channel 60V 7A (Ta), 23A (Tc) 2.1W (Ta), 41.5W (Tc) Surface Mount TO-263 (D²Pak) |
| Current - Continuous Drain (Id) @ 25°C | 7A (Ta), 23A (Tc) |
