AO7403

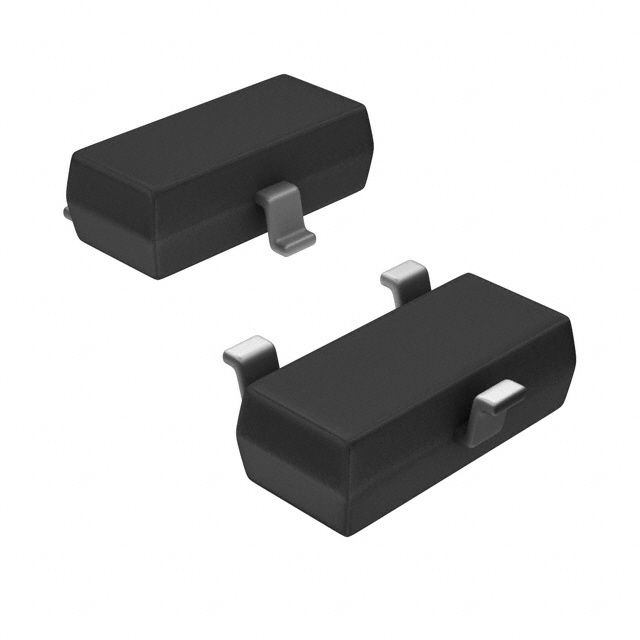

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AO7403 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy AO7403 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AO7403 |
|---|---|
| Manufacturer | Alpha and Omega Semiconductor, Inc. |
| Description | MOSFET P-CH 20V 0.7A SC70-3 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
Product parameter
| Part Number | AO7403 | Manufacturer | Alpha and Omega Semiconductor, Inc. |
|---|---|---|---|
| Description | MOSFET P-CH 20V 0.7A SC70-3 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4855 pcs | Data sheet | |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 900mV @ 250µA |
| Vgs (Max) | ±8V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | SC-70-3 | Series | - |
| Rds On (Max) @ Id, Vgs | 470 mOhm @ 700mA, 4.5V | Power Dissipation (Max) | 350mW (Ta) |
| Packaging | Tape & Reel (TR) | Package / Case | SC-70, SOT-323 |
| Operating Temperature | -55°C ~ 150°C (TJ) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 114pF @ 10V | Gate Charge (Qg) (Max) @ Vgs | 1.44nC @ 4.5V |
| FET Type | P-Channel | FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 4.5V | Drain to Source Voltage (Vdss) | 20V |
| Detailed Description | P-Channel 20V 700mA (Ta) 350mW (Ta) Surface Mount SC-70-3 | Current - Continuous Drain (Id) @ 25°C | 700mA (Ta) |
