AO6409_102

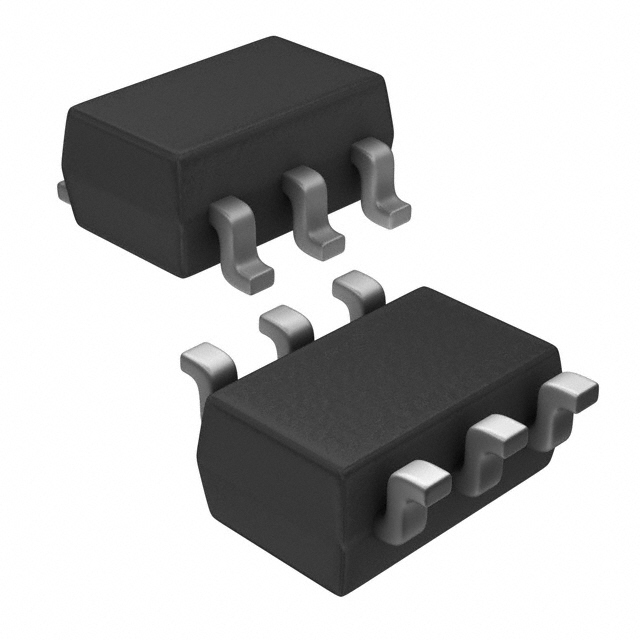

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AO6409_102 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy AO6409_102 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AO6409_102 |
|---|---|
| Manufacturer | Alpha and Omega Semiconductor, Inc. |
| Description | MOSFET P-CH 20V 5.5A 6TSOP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | AO6409_102 | Manufacturer | Alpha and Omega Semiconductor, Inc. |
|---|---|---|---|
| Description | MOSFET P-CH 20V 5.5A 6TSOP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5314 pcs | Data sheet | AO6409 |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 1V @ 250µA |
| Vgs (Max) | ±8V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | 6-TSOP | Series | - |
| Rds On (Max) @ Id, Vgs | 45 mOhm @ 5A, 4.5V | Power Dissipation (Max) | 2.1W (Ta) |
| Packaging | Bulk | Package / Case | SC-74, SOT-457 |
| Operating Temperature | -55°C ~ 150°C (TJ) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 1450pF @ 10V | Gate Charge (Qg) (Max) @ Vgs | 17.2nC @ 4.5V |
| FET Type | P-Channel | FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 4.5V | Drain to Source Voltage (Vdss) | 20V |
| Detailed Description | P-Channel 20V 5.5A (Ta) 2.1W (Ta) Surface Mount 6-TSOP | Current - Continuous Drain (Id) @ 25°C | 5.5A (Ta) |
