AO5803E

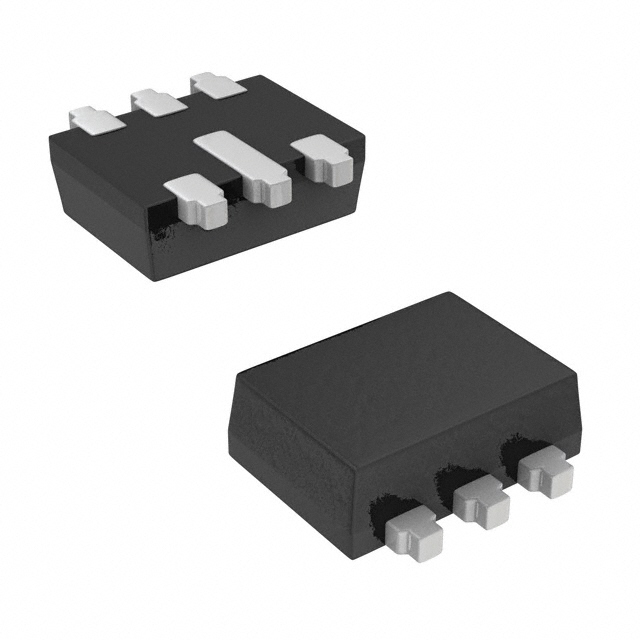

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AO5803E with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy AO5803E with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AO5803E |
|---|---|
| Manufacturer | Alpha and Omega Semiconductor, Inc. |
| Description | MOSFET 2P-CH 20V 0.6A SC89-6L |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | AO5803E | Manufacturer | Alpha and Omega Semiconductor, Inc. |
|---|---|---|---|
| Description | MOSFET 2P-CH 20V 0.6A SC89-6L | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5063 pcs | Data sheet | SC-89-6L Pkg Drawing |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 900mV @ 250µA |
| Supplier Device Package | SC-89-6 | Series | - |
| Rds On (Max) @ Id, Vgs | 800 mOhm @ 600mA, 4.5V | Power - Max | 400mW |
| Packaging | Tape & Reel (TR) | Package / Case | SOT-563, SOT-666 |
| Other Names | 785-1561-2 AO5803E-ND |
Operating Temperature | -50°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 100pF @ 10V |
| Gate Charge (Qg) (Max) @ Vgs | - | FET Type | 2 P-Channel (Dual) |
| FET Feature | Logic Level Gate | Drain to Source Voltage (Vdss) | 20V |
| Detailed Description | Mosfet Array 2 P-Channel (Dual) 20V 400mW Surface Mount SC-89-6 | Current - Continuous Drain (Id) @ 25°C | - |
