Home > Products > Development Boards, Kits, Programmers > Evaluation Boards - LED Drivers > ASEK1569KLJ-T-DK

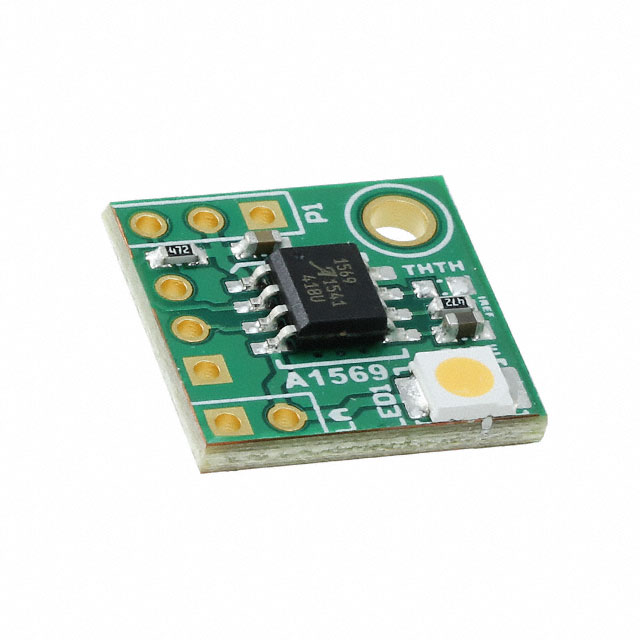

ASEK1569KLJ-T-DK

ASEK1569KLJ-T-DK

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ASEK1569KLJ-T-DK with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	ASEK1569KLJ-T-DK
Manufacturer	Allegro MicroSystems, LLC.
Description	EVAL BOARD FOR A1569K
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 5004 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$7.627

Product parameter
Data sheet

Product parameter

Part Number	ASEK1569KLJ-T-DK	Manufacturer	Allegro MicroSystems, LLC.
Description	EVAL BOARD FOR A1569K	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5004 pcs	Data sheet	ASEK1569KLJ-T-DK User Manual A1569K Datasheet
Category	Development Boards, Kits, Programmers	Voltage - Output	-
Voltage - Input	7 V ~ 24 V	Utilized IC / Part	A1569K
Supplied Contents	Board(s)	Series	-
Outputs and Type	1, Non-Isolated	Other Names	620-1847
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	-
Detailed Description	A1569K 1, Non-Isolated Outputs LED Driver Evaluation Board	Current - Output / Channel	150mA
