Home > Products > Sensors, Transducers > Current Transducers > ACS756SCA-050B-PFF-T

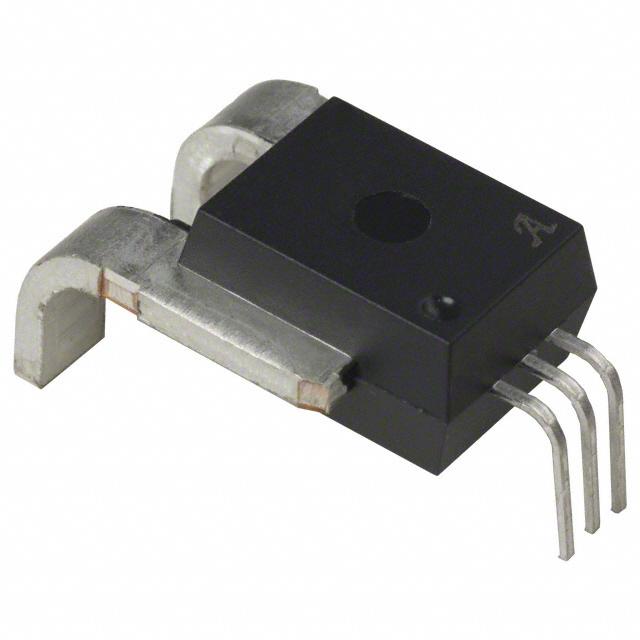

ACS756SCA-050B-PFF-T

ACS756SCA-050B-PFF-T

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ACS756SCA-050B-PFF-T with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	ACS756SCA-050B-PFF-T
Manufacturer	Allegro MicroSystems, LLC.
Description	SENSOR CURRENT HALL 50A AC/DC
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 5226 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	ACS756SCA-050B-PFF-T	Manufacturer	Allegro MicroSystems, LLC.
Description	SENSOR CURRENT HALL 50A AC/DC	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5226 pcs	Data sheet	ACS756
Category	Sensors, Transducers	Voltage - Supply	3 V ~ 5.5 V
Series	-	Sensor Type	Hall Effect, Open Loop
Sensitivity	40mV/A	Response Time	3µs
Polarization	Bidirectional	Packaging	Tube
Package / Case	5-CA Formed Leads	Output	Ratiometric, Voltage
Other Names	620-1237 ACS756SCA-050B-T ACS756SCA050BPFFT	Operating Temperature	-20°C ~ 85°C
Number of Channels	1	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Linearity	±1%
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Frequency	DC ~ 120kHz
For Measuring	AC/DC	Detailed Description	Current Sensor 50A 1 Channel Hall Effect, Open Loop Bidirectional 5-CA Formed Leads
Current - Supply (Max)	14mA	Current - Sensing	50A
Accuracy	±5%
