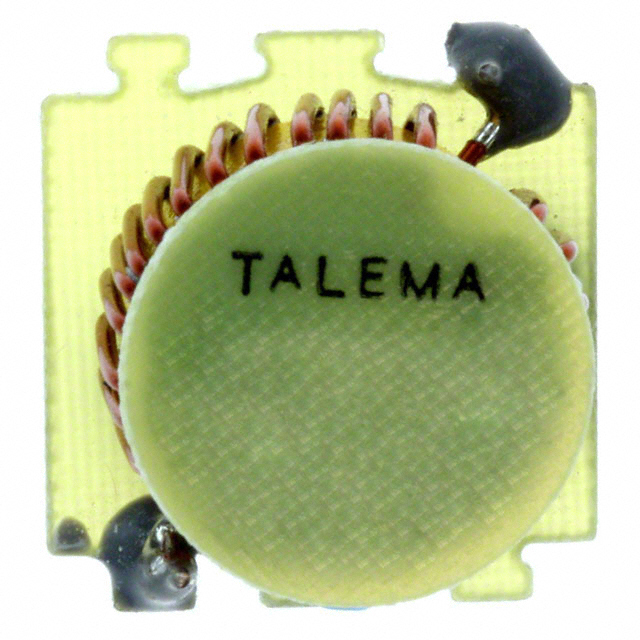

SWT-3.0-47
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SWT-3.0-47 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SWT-3.0-47 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SWT-3.0-47 |
|---|---|
| Manufacturer | AlfaMag Electronics (AMGIS) |
| Description | FIXED IND 47UH 3A 50 MOHM TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 200 pcs | ||||
|---|---|---|---|---|---|
| $1.267 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | SWT-3.0-47 | Manufacturer | AlfaMag Electronics (AMGIS) |
|---|---|---|---|
| Description | FIXED IND 47UH 3A 50 MOHM TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 29809 pcs | Data sheet | SW Series 50kHz |
| Category | Inductors, Coils, Chokes | Type | Toroidal |
| Tolerance | ±20% | Supplier Device Package | - |
| Size / Dimension | 0.701" L x 0.669" W (17.80mm x 17.00mm) | Shielding | Unshielded |
| Series | SW | Ratings | - |
| Q @ Freq | - | Packaging | Bulk |
| Package / Case | Radial | Other Names | SWT3.047 TE2002 |
| Operating Temperature | -40°C ~ 125°C | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | Iron Powder |
| Manufacturer Standard Lead Time | 15 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 10kHz | Inductance | 47µH |
| Height - Seated (Max) | 0.422" (10.71mm) | Frequency - Self Resonant | - |
| Detailed Description | 47µH Unshielded Toroidal Inductor 3A 50 mOhm Max Radial | DC Resistance (DCR) | 50 mOhm Max |
| Current Rating | 3A | Current - Saturation | - |
