Home > Products > Inductors, Coils, Chokes > Fixed Inductors > SWS-3.0-47

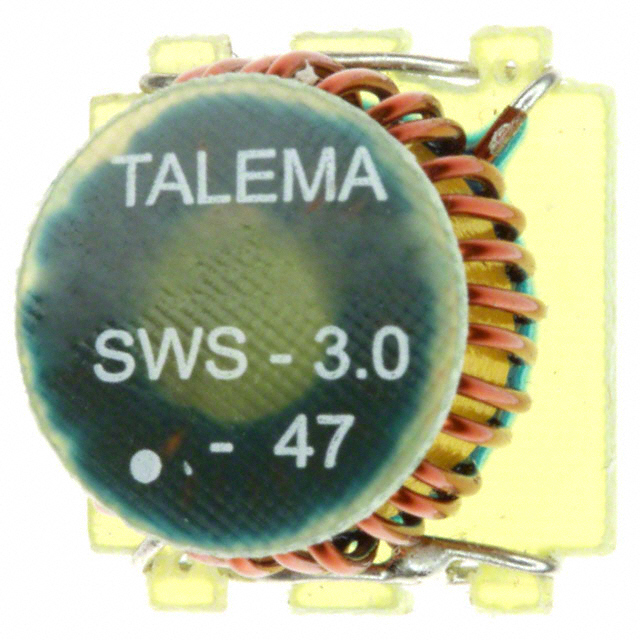

SWS-3.0-47

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SWS-3.0-47 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	SWS-3.0-47
Manufacturer	AlfaMag Electronics (AMGIS)
Description	FIXED IND 47UH 3A 50 MOHM SMD
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 5840 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	SWS-3.0-47	Manufacturer	AlfaMag Electronics (AMGIS)
Description	FIXED IND 47UH 3A 50 MOHM SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5840 pcs	Data sheet	SW Series 50kHz
Category	Inductors, Coils, Chokes	Type	Toroidal
Tolerance	±20%	Supplier Device Package	-
Size / Dimension	0.701" L x 0.669" W (17.80mm x 17.00mm)	Shielding	Unshielded
Series	SW	Ratings	-
Q @ Freq	-	Packaging	Bulk
Package / Case	Nonstandard	Other Names	SWS3.047 TE2001
Operating Temperature	-40°C ~ 125°C	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	2 (1 Year)	Material - Core	Iron Powder
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance Frequency - Test	10kHz
Inductance	47µH	Height - Seated (Max)	0.435" (11.05mm)
Frequency - Self Resonant	-	Detailed Description	47µH Unshielded Toroidal Inductor 3A 50 mOhm Max Nonstandard
DC Resistance (DCR)	50 mOhm Max	Current Rating	3A
Current - Saturation	-
