Home > Products > Inductors, Coils, Chokes > Fixed Inductors > SWS-0.84-26

SWS-0.84-26

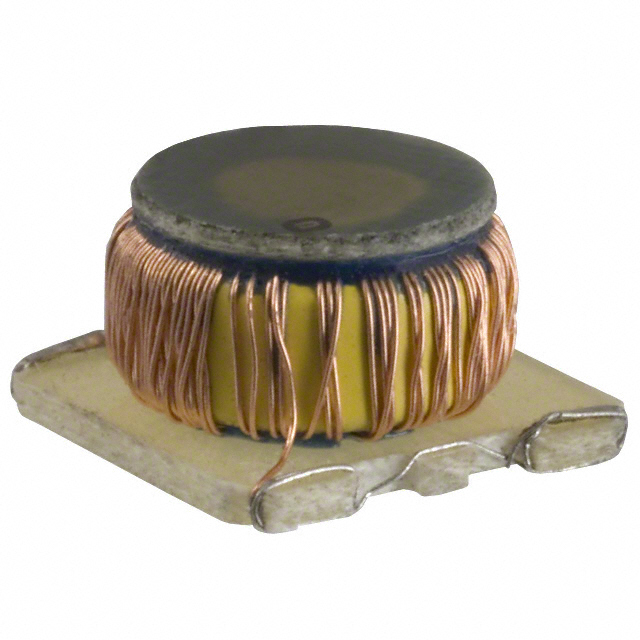

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SWS-0.84-26 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	SWS-0.84-26
Manufacturer	AlfaMag Electronics (AMGIS)
Description	FIXED IND 26UH 840MA 200 MOHM
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 4582 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	SWS-0.84-26	Manufacturer	AlfaMag Electronics (AMGIS)
Description	FIXED IND 26UH 840MA 200 MOHM	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4582 pcs	Data sheet	SW Series 150kHz
Category	Inductors, Coils, Chokes	Type	Toroidal
Tolerance	±20%	Size / Dimension	0.394" L x 0.394" W (10.00mm x 10.00mm)
Shielding	Unshielded	Series	SW
Ratings	-	Q @ Freq	-
Packaging	Tape & Reel (TR)	Package / Case	Nonstandard
Other Names	SWS0.8426 TE2046TR	Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	2 (1 Year)
Material - Core	Iron Powder	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Inductance Frequency - Test	10kHz	Inductance	26µH
Height - Seated (Max)	0.266" (6.75mm)	Frequency - Self Resonant	-
Detailed Description	26µH Unshielded Toroidal Inductor 840mA 200 mOhm Nonstandard	DC Resistance (DCR)	200 mOhm
Current Rating	840mA	Current - Saturation	-
