SWB-0.42-2200
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SWB-0.42-2200 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SWB-0.42-2200 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SWB-0.42-2200 |
|---|---|
| Manufacturer | AlfaMag Electronics (AMGIS) |
| Description | FIXED IND 2.2MH 420MA 1.8 OHM TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 100 pcs | ||||
|---|---|---|---|---|---|
| $2.246 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | SWB-0.42-2200 | Manufacturer | AlfaMag Electronics (AMGIS) |
|---|---|---|---|
| Description | FIXED IND 2.2MH 420MA 1.8 OHM TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 15527 pcs | Data sheet | SW Series 50kHz |
| Category | Inductors, Coils, Chokes | Type | Toroidal |
| Tolerance | ±20% | Supplier Device Package | - |
| Size / Dimension | 1.449" L x 0.799" W (36.80mm x 20.30mm) | Shielding | Unshielded |
| Series | SW | Ratings | - |
| Q @ Freq | - | Packaging | Bulk |
| Package / Case | Radial | Other Names | SWB0.422200 TE2031 |
| Operating Temperature | -40°C ~ 125°C | Mounting Type | Through Hole |
| Material - Core | Iron Powder | Manufacturer Standard Lead Time | 15 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance Frequency - Test | 10kHz |
| Inductance | 2.2mH | Height - Seated (Max) | 1.378" (35.00mm) |
| Frequency - Self Resonant | - | Detailed Description | 2.2mH Unshielded Toroidal Inductor 420mA 1.8 Ohm Max Radial |
| DC Resistance (DCR) | 1.8 Ohm Max | Current Rating | 420mA |
| Current - Saturation | - |
- Related products
- Related news
Related products
- Part#:
P0849SNL - Manufacturers:
Pulse Electronics Corporation - Description:
FIXED IND 33UH 5A 19 MOHM SMD - In Stock:
46793
- Part#:
100-121K - Manufacturers:
API Delevan - Description:
FIXED IND 120NH 335MA 140 MOHM - In Stock:
3159
- Part#:
SD3118-470-R - Manufacturers:
Bussmann (Eaton) - Description:
FIXED IND 47UH 370MA 1.21 OHM - In Stock:
72891
- Part#:
744771133 - Manufacturers:
Wurth Electronics - Description:
FIXED IND 33UH 2.68A 57 MOHM SMD - In Stock:
96058
- Part#:
NR3015T150M - Manufacturers:
Taiyo Yuden - Description:
FIXED IND 15UH 560MA 432 MOHM - In Stock:
483339
- Part#:
MIL4922-14L - Manufacturers:
API Delevan - Description:
FIXED IND 12UH 2.24A 79 MOHM SMD - In Stock:
32429
- Part#:
LK1005R12M-TV - Manufacturers:
Taiyo Yuden - Description:
FIXED IND 120NH 25MA 590 MOHM - In Stock:
1670214
- Part#:
PT150-1250 - Manufacturers:
API Delevan - Description:
FIXED IND 150UH 5.7A 60 MOHM TH - In Stock:
15676
- Part#:

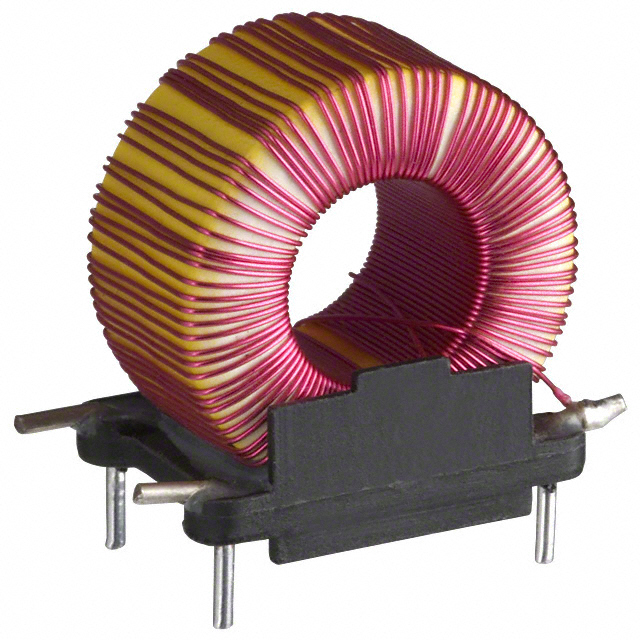

SWB-0.62-1500 - Manufacturers:
