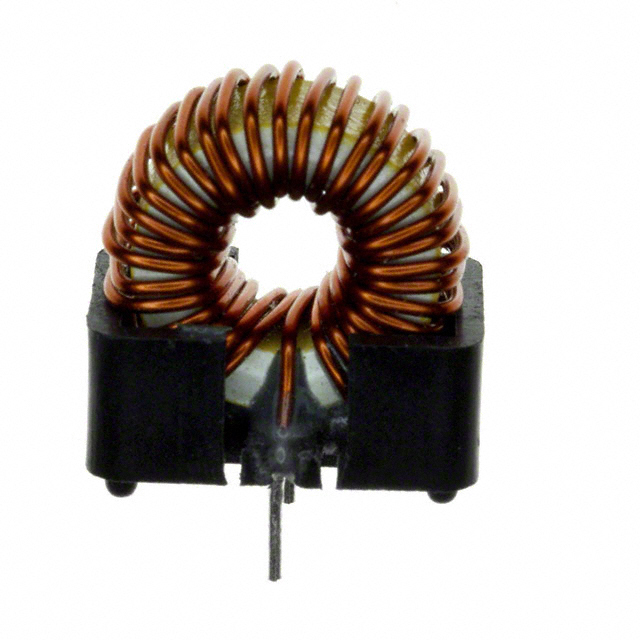

SH50C-3.0-47
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SH50C-3.0-47 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SH50C-3.0-47 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SH50C-3.0-47 |
|---|---|
| Manufacturer | AlfaMag Electronics (AMGIS) |
| Description | FIXED IND 47UH 3A 50 MOHM TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 200 pcs | ||
|---|---|---|---|---|---|
| $2.214 | $2.03 | $1.329 | |||
| 600 pcs | 1000 pcs | 2600 pcs | |||
| $1.181 | $1.107 | $1.071 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | SH50C-3.0-47 | Manufacturer | AlfaMag Electronics (AMGIS) |
|---|---|---|---|
| Description | FIXED IND 47UH 3A 50 MOHM TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 28810 pcs | Data sheet | SH50 Series |
| Category | Inductors, Coils, Chokes | Type | Toroidal |
| Tolerance | ±20% | Supplier Device Package | - |
| Size / Dimension | 0.650" L x 0.449" W (16.50mm x 11.40mm) | Shielding | Unshielded |
| Series | SH50 | Ratings | - |
| Q @ Freq | - | Packaging | Tray |
| Package / Case | Radial | Other Names | SH50C3047 TE2152 |
| Operating Temperature | -40°C ~ 125°C | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | Iron Powder |
| Manufacturer Standard Lead Time | 18 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 10kHz | Inductance | 47µH |
| Height - Seated (Max) | 0.760" (19.30mm) | Frequency - Self Resonant | - |
| Detailed Description | 47µH Unshielded Toroidal Inductor 3A 50 mOhm Max Radial | DC Resistance (DCR) | 50 mOhm Max |
| Current Rating | 3A | Current - Saturation | - |
