SH150S-0.30-55

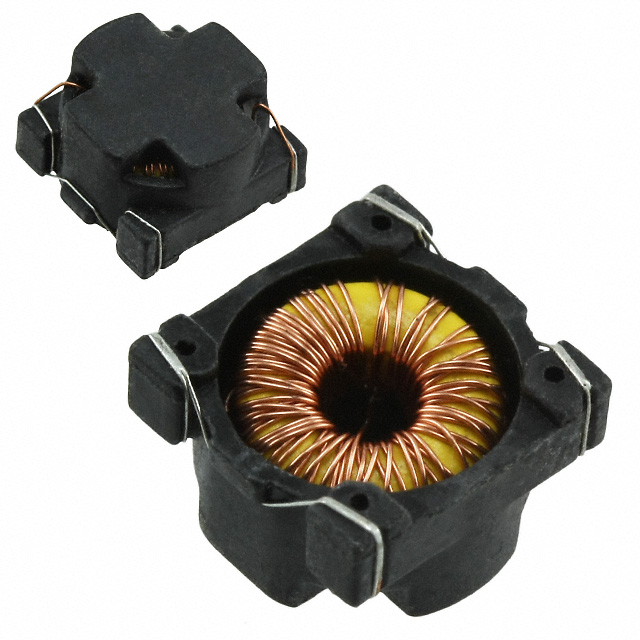

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SH150S-0.30-55 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SH150S-0.30-55 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SH150S-0.30-55 |
|---|---|
| Manufacturer | AlfaMag Electronics (AMGIS) |
| Description | FIXED IND 55UH 300MA 1 OHM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 600 pcs | ||||
|---|---|---|---|---|---|
| $0.979 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | SH150S-0.30-55 | Manufacturer | AlfaMag Electronics (AMGIS) |
|---|---|---|---|
| Description | FIXED IND 55UH 300MA 1 OHM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 33364 pcs | Data sheet | SH150 Series |
| Category | Inductors, Coils, Chokes | Type | Toroidal |
| Tolerance | ±20% | Supplier Device Package | - |
| Size / Dimension | 0.339" L x 0.339" W (8.60mm x 8.60mm) | Shielding | Unshielded |
| Series | SH150 | Ratings | - |
| Q @ Freq | - | Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard | Other Names | SH150S03055 TE2210TR |
| Operating Temperature | -40°C ~ 125°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) | Material - Core | Iron Powder |
| Manufacturer Standard Lead Time | 17 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 10kHz | Inductance | 55µH |
| Height - Seated (Max) | 0.215" (5.45mm) | Frequency - Self Resonant | - |
| Detailed Description | 55µH Unshielded Toroidal Inductor 300mA 1 Ohm Nonstandard | DC Resistance (DCR) | 1 Ohm |
| Current Rating | 300mA | Current - Saturation | - |
