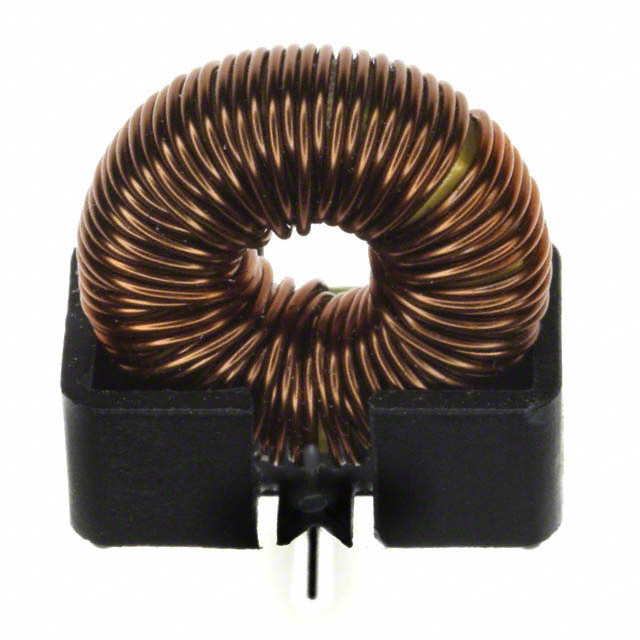

SH150C-2.22-114
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SH150C-2.22-114 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SH150C-2.22-114 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SH150C-2.22-114 |
|---|---|
| Manufacturer | AlfaMag Electronics (AMGIS) |
| Description | FIXED IND 114UH 2.22A 100 MOHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 200 pcs | ||
|---|---|---|---|---|---|
| $2.552 | $2.32 | $1.578 | |||
| 600 pcs | 1000 pcs | 2600 pcs | |||
| $1.439 | $1.346 | $1.299 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | SH150C-2.22-114 | Manufacturer | AlfaMag Electronics (AMGIS) |
|---|---|---|---|
| Description | FIXED IND 114UH 2.22A 100 MOHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 26249 pcs | Data sheet | SH150 Series |
| Category | Inductors, Coils, Chokes | Type | Toroidal |
| Tolerance | ±20% | Supplier Device Package | - |
| Size / Dimension | 0.827" L x 0.449" W (21.00mm x 11.40mm) | Shielding | Unshielded |
| Series | SH150 | Ratings | - |
| Q @ Freq | - | Packaging | Tray |
| Package / Case | Radial | Other Names | SH150C222114 TE2221 |
| Operating Temperature | -40°C ~ 125°C | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | Iron Powder |
| Manufacturer Standard Lead Time | 17 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 10kHz | Inductance | 114µH |
| Height - Seated (Max) | 0.937" (23.80mm) | Frequency - Self Resonant | - |
| Detailed Description | 114µH Unshielded Toroidal Inductor 2.22A 100 mOhm Radial | DC Resistance (DCR) | 100 mOhm |
| Current Rating | 2.22A | Current - Saturation | - |
