CCJ-4-221

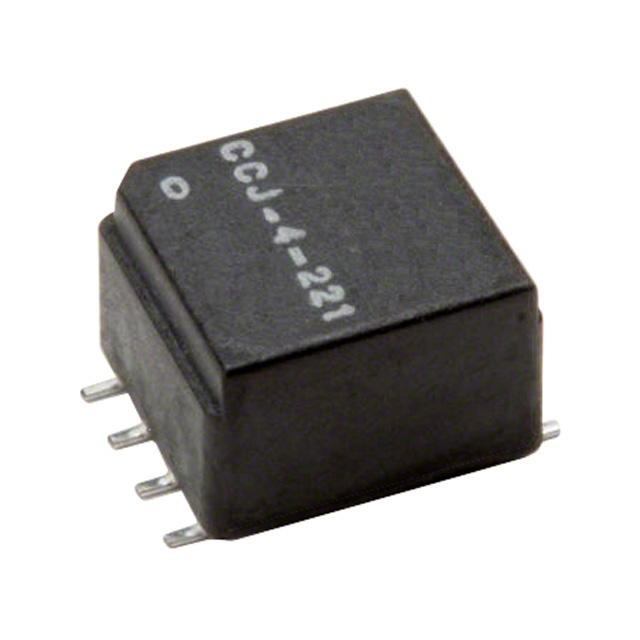

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CCJ-4-221 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CCJ-4-221 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CCJ-4-221 |
|---|---|
| Manufacturer | AlfaMag Electronics (AMGIS) |
| Description | CMC 220UH 330MA 4LN SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 375 pcs | ||||
|---|---|---|---|---|---|
| $1.886 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | CCJ-4-221 | Manufacturer | AlfaMag Electronics (AMGIS) |
|---|---|---|---|
| Description | CMC 220UH 330MA 4LN SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 20764 pcs | Data sheet | CCJ Series |
| Category | Filters | Voltage Rating - DC | - |
| Voltage Rating - AC | - | Size / Dimension | 0.551" L x 0.433" W (14.00mm x 11.00mm) |
| Series | CCJ | Ratings | - |
| Packaging | Tape & Reel (TR) | Package / Case | Vertical, 8 Flat Lead |
| Operating Temperature | 0°C ~ 70°C | Number of Lines | 4 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 15 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance @ Frequency | 220µH @ 100kHz | Height (Max) | 0.315" (8.00mm) |
| Filter Type | Signal Line | Features | - |
| Detailed Description | 220µH @ 100kHz 4 Line Common Mode Choke Surface Mount 330mA DCR 190 mOhm (Typ) | DC Resistance (DCR) (Max) | 190 mOhm (Typ) |
| Current Rating (Max) | 330mA | Approvals | - |
