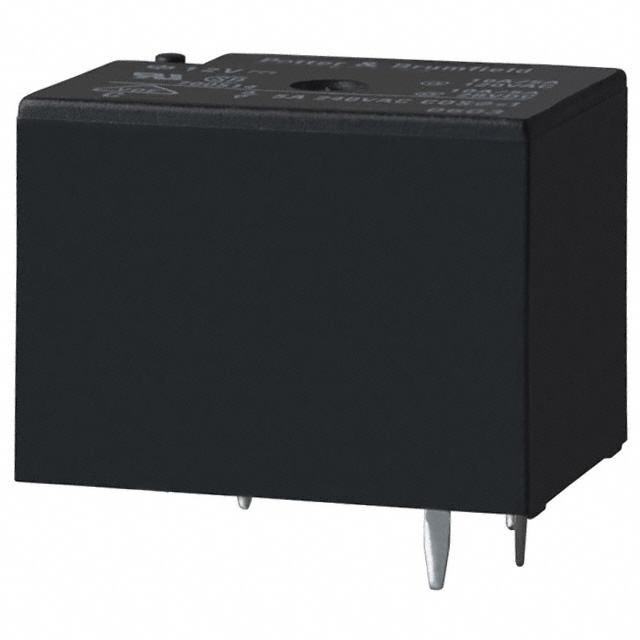

T7NS1D1-12
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy T7NS1D1-12 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy T7NS1D1-12 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | T7NS1D1-12 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | RELAY GEN PURPOSE SPST 10A 12V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | T7NS1D1-12 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | RELAY GEN PURPOSE SPST 10A 12V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5580 pcs | Data sheet | T7NS1D1 Series Drawing |
| Category | Relays | Turn On Voltage (Max) | 8.4 VDC |
| Turn Off Voltage (Min) | 1.2 VDC | Termination Style | PC Pin |
| Switching Voltage | 240VAC, 28VDC - Max | Series | T7N |
| Release Time | 5ms | Relay Type | General Purpose |
| Packaging | Tube | Other Names | 1393186-5 PB1005 |
| Operating Temperature | -40°C ~ 85°C | Operate Time | 9ms |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | Insulation - Class F, Sealed - Fully |
| Detailed Description | General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole | Contact Rating (Current) | 10A |
| Contact Material | Silver Cadmium Oxide (AgCdO) | Contact Form | SPST-NO (1 Form A) |
| Coil Voltage | 12VDC | Coil Type | Non Latching |
| Coil Resistance | 400 Ohms | Coil Power | 360 mW |
| Coil Current | 30.0mA |
