T7CS5D-24

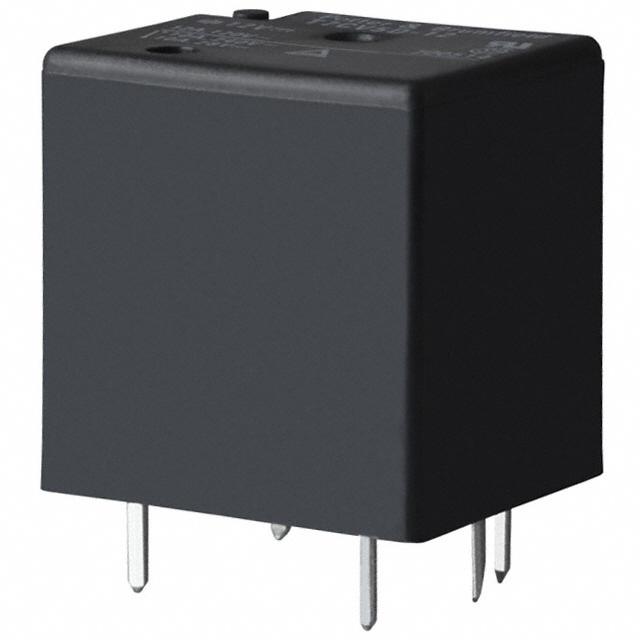

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy T7CS5D-24 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy T7CS5D-24 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | T7CS5D-24 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | RELAY GEN PURPOSE SPDT 12A 24V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | T7CS5D-24 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | RELAY GEN PURPOSE SPDT 12A 24V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5780 pcs | Data sheet | T7Cx5(1)-xx,-009 Drawing |
| Category | Relays | Turn On Voltage (Max) | 18 VDC |
| Turn Off Voltage (Min) | 1.2 VDC | Termination Style | PC Pin |
| Switching Voltage | 240VAC, 28VDC - Max | Series | T7C |
| Release Time | 5ms | Relay Type | General Purpose |
| Packaging | Tube | Other Names | 2-1393190-8 PB338 |
| Operating Temperature | -30°C ~ 85°C | Operate Time | 10ms |
| Mounting Type | Through Hole | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | Insulation - Class F, Sealed - Fully | Detailed Description | General Purpose Relay SPDT (1 Form C) 24VDC Coil Through Hole |
| Contact Rating (Current) | 12A | Contact Material | Silver Cadmium Oxide (AgCdO) |
| Contact Form | SPDT (1 Form C) | Coil Voltage | 24VDC |
| Coil Type | Non Latching | Coil Resistance | 1.6 kOhms |
| Coil Power | 360 mW | Coil Current | 15.0mA |
