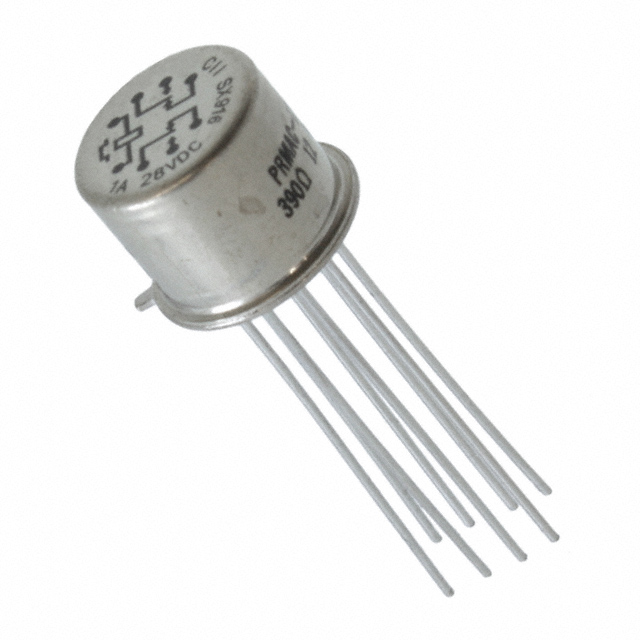

PRMAC-12X
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PRMAC-12X with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PRMAC-12X with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PRMAC-12X |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | RELAY GEN PURPOSE DPDT 1A 28V |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $28.106 | $26.626 | $25.147 | $23.667 | $22.188 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | PRMAC-12X | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | RELAY GEN PURPOSE DPDT 1A 28V | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 1401 pcs | Data sheet | PRMAC-12X |
| Category | Relays | Turn On Voltage (Max) | 7 VDC |
| Turn Off Voltage (Min) | 0.63 VDC | Termination Style | PC Pin |
| Switching Voltage | 28VDC - Nom | Series | PRMA, CII |
| Release Time | 1.5ms | Relay Type | General Purpose |
| Packaging | Bulk | Other Names | 2-1617109-6 216171096 A107308 |
| Operating Temperature | -65°C ~ 125°C | Operate Time | 2ms |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 17 Weeks | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Features | Sealed - Hermetically | Detailed Description | General Purpose Relay DPDT (2 Form C) Through Hole |
| Contact Rating (Current) | 1A | Contact Material | - |
| Contact Form | DPDT (2 Form C) | Coil Voltage | 12VDC |
| Coil Type | Non Latching | Coil Resistance | 390 Ohms |
| Coil Power | 369 mW | Coil Current | 30.7mA |
