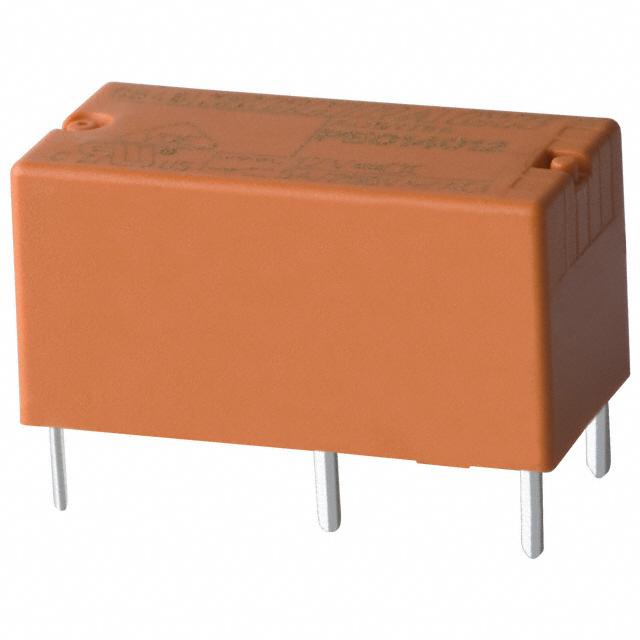

PE014F05
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PE014F05 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PE014F05 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PE014F05 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | RELAY GENERAL PURPOSE SPDT 5A 5V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $2.942 | $2.759 | $2.453 | $2.33 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.207 | $1.962 | $1.839 | $1.717 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | PE014F05 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | RELAY GENERAL PURPOSE SPDT 5A 5V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 21101 pcs | Data sheet | PE Bistable Mini PCB Relay |
| Category | Relays | Turn On Voltage (Max) | 3.75 VDC |
| Turn Off Voltage (Min) | - | Termination Style | PC Pin |
| Switching Voltage | 400VAC - Max | Series | PE Bistable, SCHRACK |
| Release Time | 8ms | Relay Type | General Purpose |
| Packaging | Tube | Other Names | 1-1415390-1 1-1415390-1-ND PB2033 |
| Operating Temperature | -40°C ~ 85°C | Operate Time | 8ms |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 20 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | Sealed - Flux Protection | Detailed Description | General Purpose Relay SPDT (1 Form C) 5VDC Coil Through Hole |
| Contact Rating (Current) | 5A | Contact Material | Silver Nickel (AgNi) |
| Contact Form | SPDT (1 Form C) | Coil Voltage | 5VDC |
| Coil Type | Latching, Single Coil | Coil Resistance | 125 Ohms |
| Coil Power | 200 mW | Coil Current | 40.0mA |
