PCJ-124D3MH,301

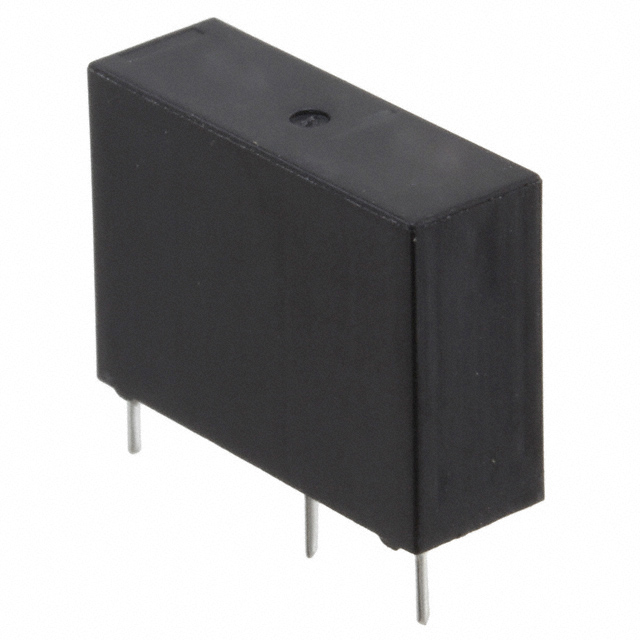

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PCJ-124D3MH,301 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PCJ-124D3MH,301 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PCJ-124D3MH,301 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | RELAY GEN PURPOSE SPST 3A 24V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.741 | $0.693 | $0.616 | $0.585 | $0.555 | |
| 300 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.493 | $0.462 | $0.431 | $0.416 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | PCJ-124D3MH,301 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | RELAY GEN PURPOSE SPST 3A 24V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 75209 pcs | Data sheet | PCJ-1xxD3M Product Spec1721081 Drawing |
| Category | Relays | Turn On Voltage (Max) | 18 VDC |
| Turn Off Voltage (Min) | 1.2 VDC | Termination Style | PC Pin |
| Switching Voltage | 250VAC, 30VDC - Max | Series | PCJ, OEG |
| Release Time | 4ms | Relay Type | General Purpose |
| Packaging | Tray | Other Names | 1-1721081-4 117210814 PB895 PCJ-124D3MH,000 |
| Operating Temperature | -40°C ~ 85°C | Operate Time | 10ms |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 19 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | Insulation - Class A, Sealed - Fully | Detailed Description | General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Through Hole |
| Contact Rating (Current) | 3A | Contact Material | Silver Nickel (AgNi) |
| Contact Form | SPST-NO (1 Form A) | Coil Voltage | 24VDC |
| Coil Type | Non Latching | Coil Resistance | 2.88 kOhms |
| Coil Power | 200 mW | Coil Current | 8.3mA |
