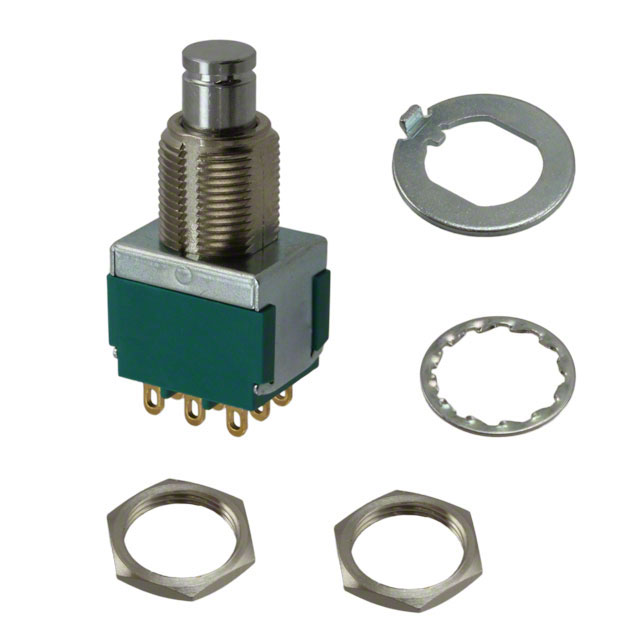

MPG306D
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MPG306D with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MPG306D with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MPG306D |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | SWITCH PUSHBUTTON 3PDT 6A 125V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $9.148 | $9.018 | $8.887 | $8.234 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $8.103 | $7.188 | $6.927 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | MPG306D | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | SWITCH PUSHBUTTON 3PDT 6A 125V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5395 pcs | Data sheet | MPG Series Drawing |
| Category | Switches | Voltage Rating - DC | 28V |
| Voltage Rating - AC | 125V | Type | Standard |
| Termination Style | Solder Lug | Switch Function | On-On |
| Series | MPG | Panel Cutout Dimensions | Circular - 11.80mm Dia |
| Packaging | Bulk | Other Names | 450-1070 5-1437567-5 |
| Operating Temperature | -20°C ~ 80°C | Mounting Type | Panel Mount, Rear |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mechanical Life | - |
| Manufacturer Standard Lead Time | 25 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Illumination Voltage (Nominal) | - |
| Illumination Type, Color | - | Features | - |
| Electrical Life | 50,000 Cycles | Detailed Description | Pushbutton Switch 3PDT Standard Panel Mount, Rear |
| Current Rating | 6A (AC), 4A (DC) | Color - Actuator/Cap | Black |
| Circuit | 3PDT | Actuator Type | Round, Button |
