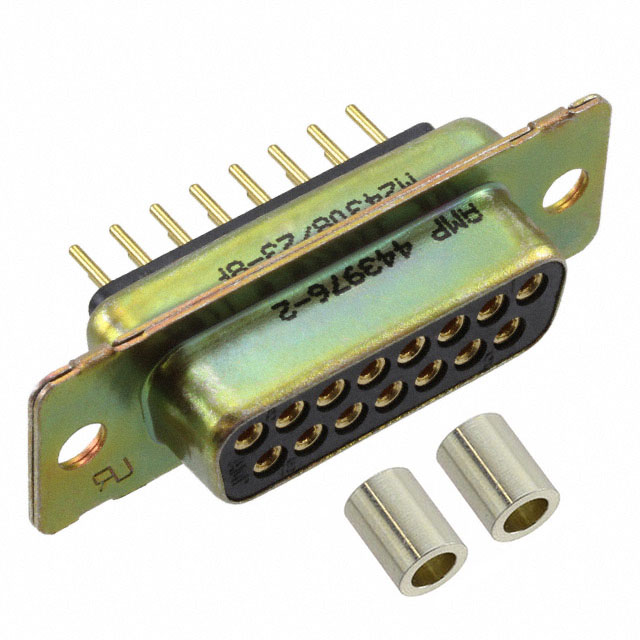

M24308/23-8F
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M24308/23-8F with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy M24308/23-8F with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | M24308/23-8F |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN D-SUB RCPT 15POS VERT SLDR |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $4.419 | $4.019 | $3.918 | $3.617 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $3.416 | $3.115 | $2.914 | $2.673 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | M24308/23-8F | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN D-SUB RCPT 15POS VERT SLDR | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 11522 pcs | Data sheet | 443976 Drawing |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | - | Termination | Solder |
| Shell Size, Connector Layout | 2 (DA, A) | Shell Material, Finish | Steel, Cadmium Plated |
| Series | Military, MIL-DTL-24308, AMPLIMITE 109 | Packaging | Bulk |
| Other Names | 1122-1283 443976-2 443976-2-MIL 443976-2-ND M24308/23-8F-MIL M24308/23-8F-ND |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions | 15 |
| Mounting Type | Through Hole | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Ingress Protection | - | Housing Material | - |
| Flange Feature | Housing/Shell (Unthreaded) | Features | - |
| Detailed Description | 15 Position D-Sub Receptacle, Female Sockets Connector | Current Rating | 5A |
| Contact Type | Signal | Contact Material | Brass |
| Contact Form | - | Contact Finish Thickness | 10.0µin (0.25µm) |
| Contact Finish | Gold | Connector Type | Receptacle, Female Sockets |
| Connector Style | D-Sub | Color | Black |
| Backset Spacing | - |
