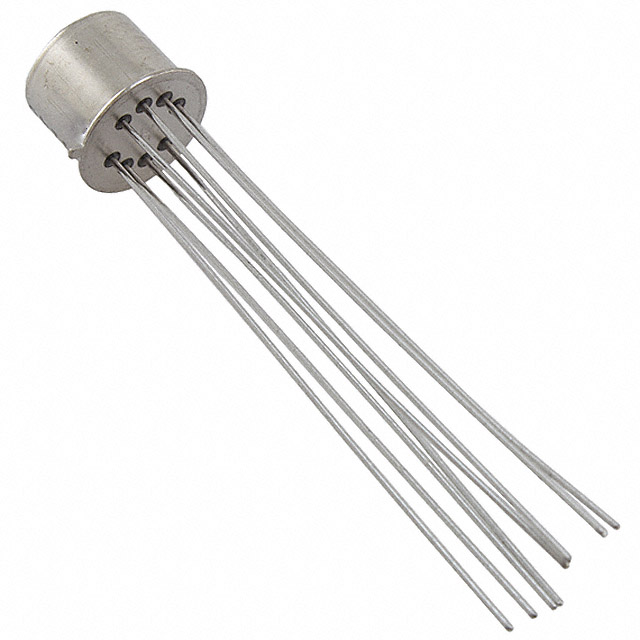

JMAW-26XL
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JMAW-26XL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JMAW-26XL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JMAW-26XL |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | RELAY GEN PURPOSE DPDT 1A 28V |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $35.339 | $33.377 | $31.413 | $29.45 | $27.487 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | JMAW-26XL | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | RELAY GEN PURPOSE DPDT 1A 28V | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 1423 pcs | Data sheet | JMAW-26XL |
| Category | Relays | Turn On Voltage (Max) | 14.2 VDC |
| Turn Off Voltage (Min) | 1.37 VDC | Termination Style | PC Pin |
| Switching Voltage | 28VDC - Nom | Series | Military, MIL-R-39016/9, MA, CII |
| Release Time | 1.5ms | Relay Type | General Purpose |
| Packaging | Bulk | Other Names | 1122-1069 1122-1069-MIL 1617125-5 A101627 A101627-ND JMAW26XL M39016/9-018L |
| Operating Temperature | -65°C ~ 125°C | Operate Time | 2ms |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 15 Weeks | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Features | Sealed - Hermetically | Detailed Description | General Purpose Relay DPDT (2 Form C) Through Hole |
| Contact Rating (Current) | 1A | Contact Material | - |
| Contact Form | DPDT (2 Form C) | Coil Voltage | 26.5VDC |
| Coil Type | Non Latching | Coil Resistance | 1.56 kOhms |
| Coil Power | 450 mW | Coil Current | 17.0mA |
