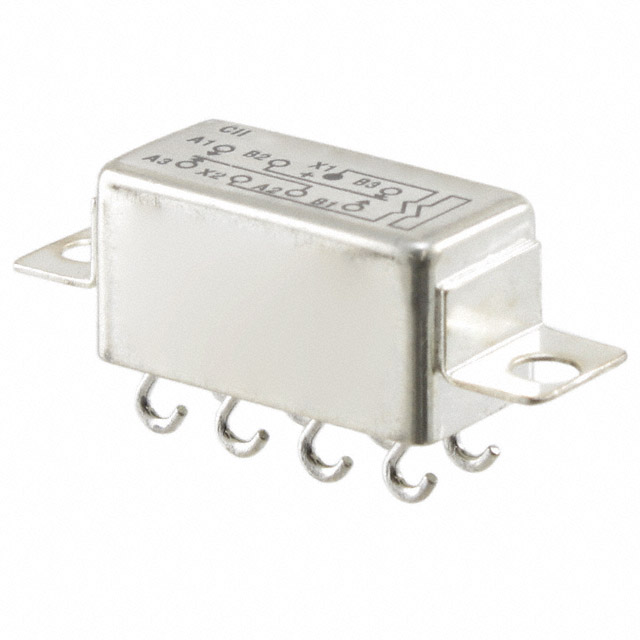

HMB1130K01M
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HMB1130K01M with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HMB1130K01M with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HMB1130K01M |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | RELAY GEN PURPOSE DPDT 2A 28V |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $53.742 | $50.579 | $47.418 | $44.257 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | HMB1130K01M | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | RELAY GEN PURPOSE DPDT 2A 28V | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 693 pcs | Data sheet | HFW,HMB,HMS DatasheetHMB1130K01M |
| Category | Relays | Turn On Voltage (Max) | 15 VDC |
| Turn Off Voltage (Min) | 1.5 VDC | Termination Style | Solder Hook |
| Switching Voltage | 28VDC - Nom | Series | Military, MIL-R-39016/22, HMB, CII |
| Release Time | 5ms | Relay Type | General Purpose |
| Packaging | Bulk | Other Names | 1122-1136 1122-1136-MIL 1122-1136-ND 1617038-6 A101706 A101706-ND A132189 HMB1130K01M-ND M39016/22-004M |
| Operating Temperature | -65°C ~ 125°C | Operate Time | 5ms |
| Mounting Type | Chassis Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 15 Weeks | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Features | Sealed - Hermetically | Detailed Description | General Purpose Relay DPDT (2 Form C) Chassis Mount |
| Contact Rating (Current) | 2A | Contact Material | - |
| Contact Form | DPDT (2 Form C) | Coil Voltage | 26.5VDC |
| Coil Type | Non Latching | Coil Resistance | 700 Ohms |
| Coil Power | 1 W | Coil Current | 37.9mA |
