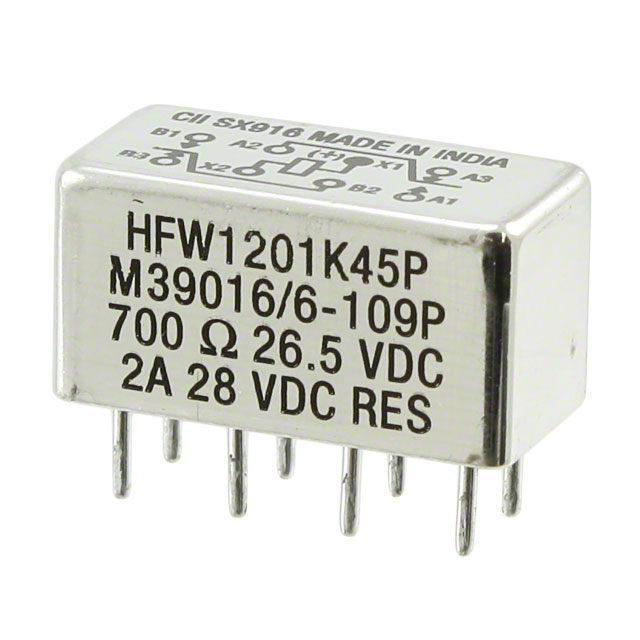

HFW1201K45P
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HFW1201K45P with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HFW1201K45P with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HFW1201K45P |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | RELAY GEN PURPOSE DPDT 2A 28V |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $37.887 | $35.783 | $33.678 | $31.573 | $29.468 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | HFW1201K45P | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | RELAY GEN PURPOSE DPDT 2A 28V | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 1186 pcs | Data sheet | HFW1201K45P Drawing |
| Category | Relays | Turn On Voltage (Max) | 13.5 VDC |
| Turn Off Voltage (Min) | 1.5 VDC | Termination Style | PC Pin |
| Switching Voltage | 28VDC - Nom | Series | Military, MIL-R-39016/6, HFW, CII |
| Release Time | 4ms | Relay Type | General Purpose |
| Packaging | Bulk | Other Names | 1122-1132 1122-1132-MIL 2-1617031-2 A101698 A101698-ND HFW1201K45P-ND M39016/6-109P |
| Operating Temperature | -65°C ~ 125°C | Operate Time | 4ms |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Features | Sealed - Hermetically | Detailed Description | General Purpose Relay DPDT (2 Form C) Through Hole |
| Contact Rating (Current) | 2A | Contact Material | - |
| Contact Form | DPDT (2 Form C) | Coil Voltage | 26.5VDC |
| Coil Type | Non Latching | Coil Resistance | 700 Ohms |
| Coil Power | 1 W | Coil Current | 37.9mA |
