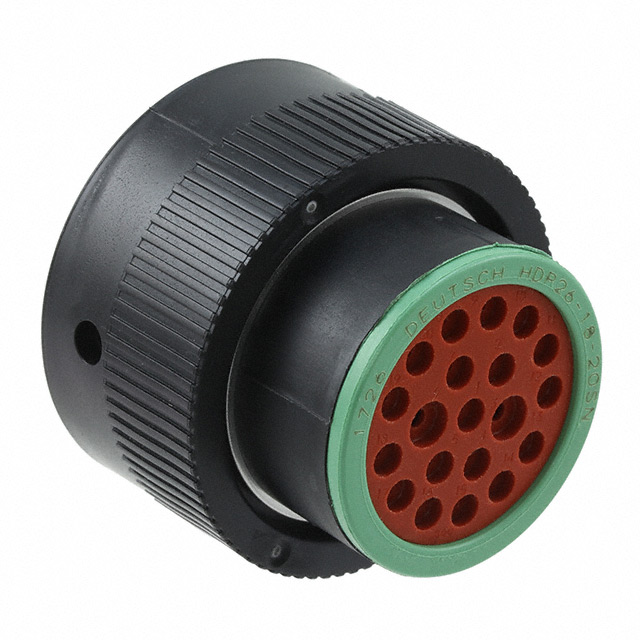

HDP26-18-20SN
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HDP26-18-20SN with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HDP26-18-20SN with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HDP26-18-20SN |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN PLUG HSG FMALE 20POS INLINE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $5.723 | $5.202 | $5.072 | $4.682 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $4.422 | $4.032 | $3.772 | $3.459 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | HDP26-18-20SN | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN PLUG HSG FMALE 20POS INLINE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 9640 pcs | Data sheet | HDP26-18-xxP/Sx Drawing |
| Category | Connectors, Interconnects | Type | For Female Sockets |
| Shielding | Unshielded | Shell Size, MIL | - |
| Shell Size - Insert | 18-20 | Shell Material | Thermoplastic |
| Shell Finish | - | Series | HDP20 |
| Packaging | Bulk | Other Names | 1734-1507 HDP26-18-20SN-ND |
| Orientation | Keyed | Operating Temperature | -55°C ~ 125°C |
| Number of Positions | 20 | Note | Contacts Not Included |
| Mounting Type | Free Hanging (In-Line) | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | Not Applicable | Material Flammability Rating | UL94 V-1 |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | - | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Includes | - | Housing Color | Black |
| Features | Coupling Nut | Fastening Type | Bayonet Lock |
| Detailed Description | 20 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut | Coupling Nut Material, Plating | Thermoplastic |
| Coupling Nut Diameter | 1.700" (43.18mm) | Contact Type | Crimp |
| Contact Size | 16 (2), 20 (18) | Contact Shape | Circular |
| Connector Type | Plug Housing |
