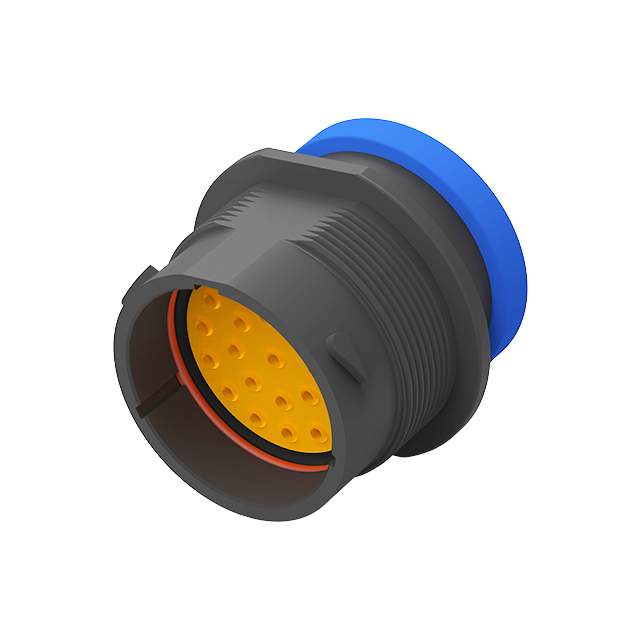

HDP24-24-23PE
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HDP24-24-23PE with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HDP24-24-23PE with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HDP24-24-23PE |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN RCPT HSNG MALE 23POS PNL MT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $6.411 | $5.953 | $5.343 | $5.19 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $4.58 | $4.274 | $4.183 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | HDP24-24-23PE | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN RCPT HSNG MALE 23POS PNL MT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 8189 pcs | Data sheet | HDP24-24-xxPx/Sx Drawing |
| Category | Connectors, Interconnects | Type | For Male Pins |
| Shielding | Unshielded | Shell Size, MIL | - |
| Shell Size - Insert | 24-23 | Shell Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Shell Finish | - | Series | HDP20 |
| Packaging | Bulk | Other Names | 1734-1203 |
| Orientation | Keyed | Operating Temperature | -55°C ~ 125°C |
| Number of Positions | 23 | Note | Contacts Not Included; Jam Nut Not Included |
| Mounting Type | Panel Mount | Mounting Feature | Bulkhead - Front Side Nut |
| Material Flammability Rating | UL94 V-1 | Manufacturer Standard Lead Time | 6 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insert Material | - |
| Ingress Protection | IP67 - Dust Tight, Waterproof | Includes | - |
| Housing Color | Black | Features | Dust Cap |
| Fastening Type | Bayonet Lock | Detailed Description | 23 Position Circular Connector Receptacle Housing Panel Mount Dust Cap |
| Coupling Nut Material, Plating | - | Coupling Nut Diameter | - |
| Contact Type | Crimp | Contact Size | 16 |
| Contact Shape | Circular | Connector Type | Receptacle Housing |
