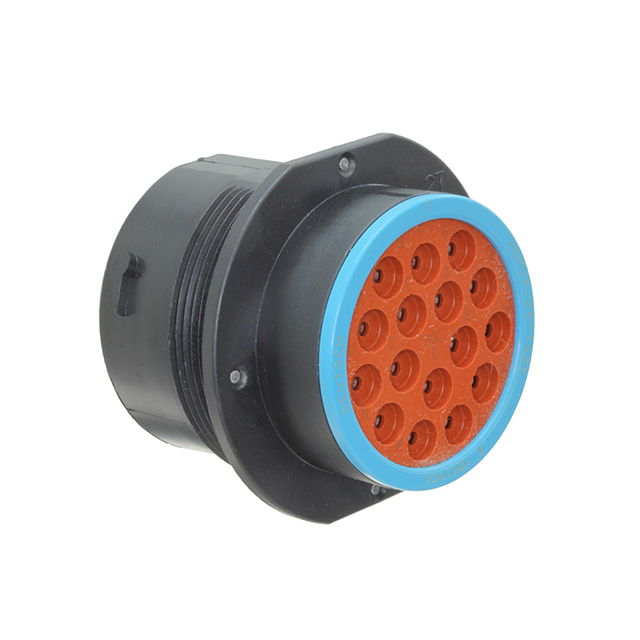

HDP24-24-16SE
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HDP24-24-16SE with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HDP24-24-16SE with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HDP24-24-16SE |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN RCPT HSG FMALE 16POS PNL MT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $4.498 | $4.088 | $3.986 | $3.679 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $3.475 | $3.168 | $2.964 | $2.719 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | HDP24-24-16SE | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN RCPT HSG FMALE 16POS PNL MT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 14325 pcs | Data sheet | HDP Series Spec SheetHDP24-24-xP(S) Drawing |
| Category | Connectors, Interconnects | Type | For Female Sockets |
| Shielding | Unshielded | Shell Size, MIL | - |
| Shell Size - Insert | 24-16 | Shell Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Shell Finish | - | Series | HDP20 |
| Packaging | Bulk | Other Names | 1734-1722 HDP24-24-16SE-ND |
| Orientation | Keyed | Operating Temperature | -55°C ~ 125°C |
| Number of Positions | 16 | Note | Contacts Not Included; Jam Nut Not Included |
| Mounting Type | Panel Mount | Mounting Feature | Bulkhead - Front Side Nut |
| Moisture Sensitivity Level (MSL) | Not Applicable | Material Flammability Rating | UL94 V-1 |
| Manufacturer Standard Lead Time | 6 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | - | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Includes | - | Housing Color | Black |
| Features | Dust Cap | Fastening Type | Bayonet Lock |
| Detailed Description | 16 Position Circular Connector Receptacle Housing Panel Mount Dust Cap | Coupling Nut Material, Plating | - |
| Coupling Nut Diameter | - | Contact Type | Crimp |
| Contact Size | 12 | Contact Shape | Circular |
| Connector Type | Receptacle Housing |
