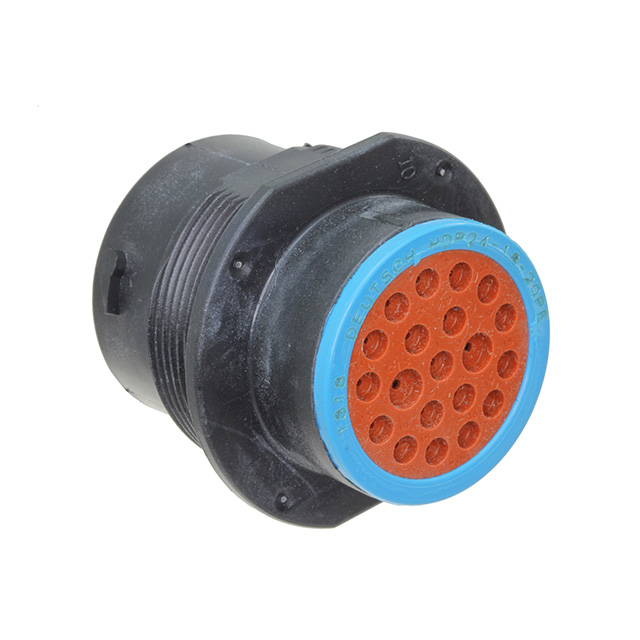

HDP24-18-20PE
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HDP24-18-20PE with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HDP24-18-20PE with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HDP24-18-20PE |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN RCPT HSG MALE 20POS PNL MNT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $4.686 | $4.261 | $4.155 | $3.835 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $3.622 | $3.302 | $3.089 | $2.834 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | HDP24-18-20PE | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN RCPT HSG MALE 20POS PNL MNT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 12090 pcs | Data sheet | HDP Series Spec SheetHDP24-18-xP(S) Drawing |
| Category | Connectors, Interconnects | Type | For Male Pins |
| Shielding | Unshielded | Shell Size, MIL | - |
| Shell Size - Insert | 18-20 | Shell Material | Thermoplastic |
| Shell Finish | - | Series | HDP20 |
| Packaging | Bulk | Other Names | 1734-1718 HDP24-18-20PE-ND |
| Orientation | Keyed | Operating Temperature | -55°C ~ 125°C |
| Number of Positions | 20 | Note | Contacts Not Included; Jam Nut Not Included |
| Mounting Type | Panel Mount | Mounting Feature | Bulkhead - Front Side Nut |
| Moisture Sensitivity Level (MSL) | Not Applicable | Material Flammability Rating | UL94 V-1 |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | - | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Includes | - | Housing Color | Black |
| Features | - | Fastening Type | Bayonet Lock |
| Detailed Description | 20 Position Circular Connector Receptacle Housing Panel Mount | Coupling Nut Material, Plating | - |
| Coupling Nut Diameter | - | Contact Type | Crimp |
| Contact Size | 16 (2), 20 (18) | Contact Shape | Circular |
| Connector Type | Receptacle Housing |
