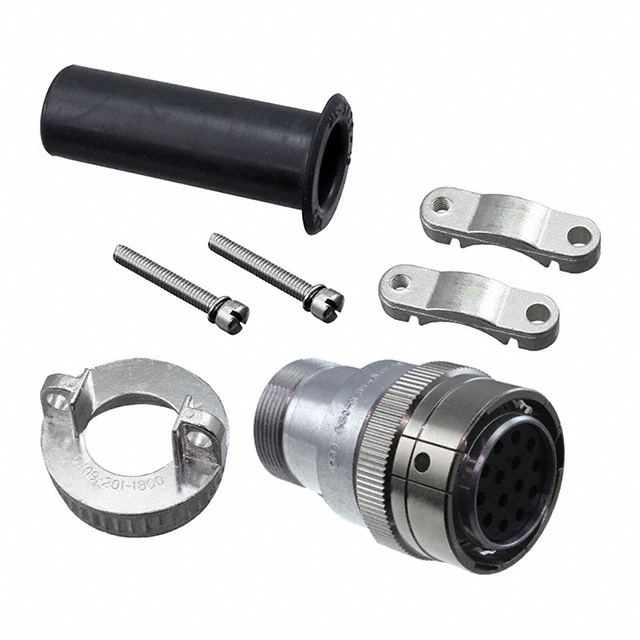

HDB36-18-14SN-059
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HDB36-18-14SN-059 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HDB36-18-14SN-059 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HDB36-18-14SN-059 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN PLUG HSG FMALE 14POS INLINE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $14.945 | $13.491 | $12.926 | |||
| 50 pcs | 100 pcs | 250 pcs | |||
| $12.118 | $11.714 | $11.068 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | HDB36-18-14SN-059 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN PLUG HSG FMALE 14POS INLINE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2758 pcs | Data sheet | HD30 Series Spec SheetHDB36-xx-xxP(Sx)-059 Drawing |
| Category | Connectors, Interconnects | Type | For Female Sockets |
| Shielding | Unshielded | Shell Size, MIL | - |
| Shell Size - Insert | 18-14 | Shell Material | Aluminum |
| Shell Finish | - | Series | HD30 |
| Packaging | Bulk | Other Names | 1734-1715 HDB36-18-14SN-059-ND |
| Orientation | Keyed | Operating Temperature | -55°C ~ 125°C |
| Number of Positions | 14 | Note | Contacts Not Included |
| Mounting Type | Free Hanging (In-Line) | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | Not Applicable | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | Polyetherimide (PEI) | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Includes | - | Housing Color | Silver |
| Features | Backshell, Cable Clamp | Fastening Type | Bayonet Lock |
| Detailed Description | 14 Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Cable Clamp | Coupling Nut Material, Plating | Aluminum |
| Coupling Nut Diameter | 1.692" (42.97mm) | Contact Type | Crimp |
| Contact Size | 16 | Contact Shape | Circular |
| Connector Type | Plug Housing |
