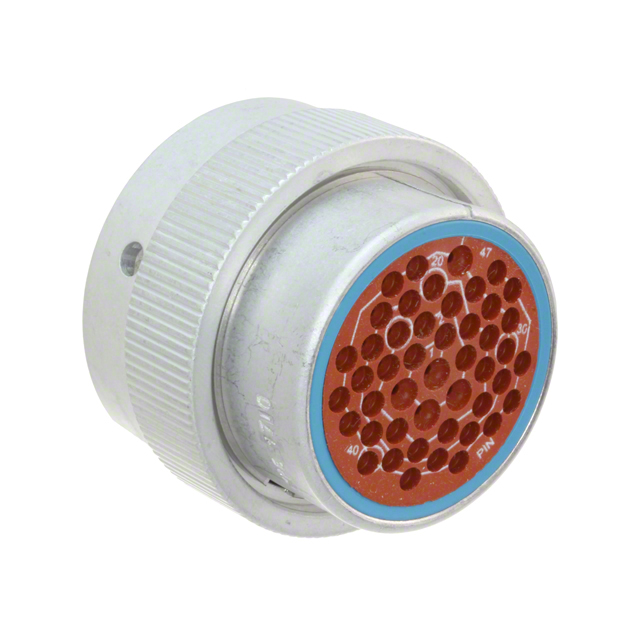

HD36-24-47PE
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HD36-24-47PE with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HD36-24-47PE with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HD36-24-47PE |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN PLUG HSG MALE 47POS INLINE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $8.032 | $7.249 | $6.946 | $6.512 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $6.294 | $5.947 | $5.774 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | HD36-24-47PE | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN PLUG HSG MALE 47POS INLINE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5462 pcs | Data sheet | HD36-24-xxP/Sx DrawingHD30 Series Spec Sheet |
| Category | Connectors, Interconnects | Type | For Male Pins |
| Shielding | Unshielded | Shell Size, MIL | - |
| Shell Size - Insert | 24-47 | Shell Material | Aluminum |
| Shell Finish | - | Series | HD30 |
| Packaging | Bulk | Other Names | 1734-1269 |
| Orientation | Keyed | Operating Temperature | -55°C ~ 125°C |
| Number of Positions | 47 | Note | Contacts Not Included |
| Mounting Type | Free Hanging (In-Line) | Mounting Feature | - |
| Material Flammability Rating | - | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insert Material | Polyetherimide (PEI) |
| Ingress Protection | IP67 - Dust Tight, Waterproof | Includes | - |
| Housing Color | Silver | Features | Coupling Nut |
| Fastening Type | Bayonet Lock | Detailed Description | 47 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut |
| Coupling Nut Material, Plating | Aluminum | Coupling Nut Diameter | 1.942" (49.32mm) |
| Contact Type | Crimp | Contact Size | 16 (5), 20 (42) |
| Contact Shape | Circular | Connector Type | Plug Housing |
