HD34-24-29SE

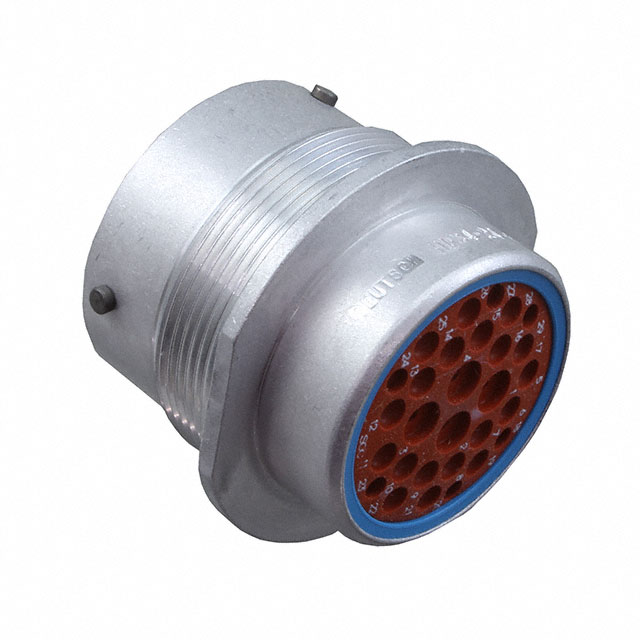

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HD34-24-29SE with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HD34-24-29SE with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HD34-24-29SE |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN RCPT HSG FMALE 29POS PNL MT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $7.108 | $6.601 | $5.924 | $5.754 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $5.077 | $4.739 | $4.637 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | HD34-24-29SE | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN RCPT HSG FMALE 29POS PNL MT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7034 pcs | Data sheet | HD30 Series Spec SheetHD34-24-xxP(SX) Drawing |
| Category | Connectors, Interconnects | Type | For Female Sockets |
| Shielding | Unshielded | Shell Size, MIL | - |
| Shell Size - Insert | 24-29 | Shell Material | Aluminum |
| Shell Finish | - | Series | HD30 |
| Packaging | Bulk | Other Names | 1734-1691 HD34-24-29SE-ND |
| Orientation | Keyed | Operating Temperature | -55°C ~ 125°C |
| Number of Positions | 29 | Note | Contacts Not Included; Jam Nut Not Included |
| Mounting Type | Panel Mount | Mounting Feature | Bulkhead - Front Side Nut |
| Moisture Sensitivity Level (MSL) | Not Applicable | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | Polyetherimide (PEI) | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Includes | - | Housing Color | Silver |
| Features | - | Fastening Type | Bayonet Lock |
| Detailed Description | 29 Position Circular Connector Receptacle Housing Panel Mount | Coupling Nut Material, Plating | - |
| Coupling Nut Diameter | - | Contact Type | Crimp |
| Contact Size | 12 (4), 16 (19), 20 (6) | Contact Shape | Circular |
| Connector Type | Receptacle Housing |
