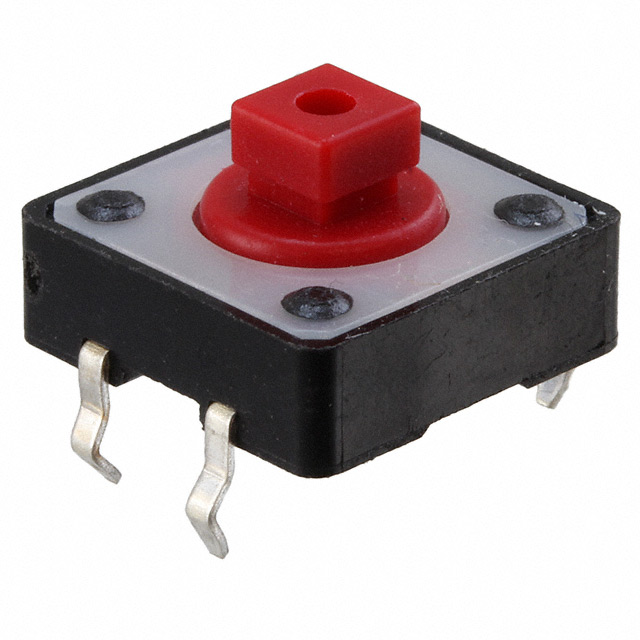

FSM103A
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FSM103A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy FSM103A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | FSM103A |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | SWITCH TACTILE SPST-NO 0.05A 24V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.105 | $0.102 | $0.098 | $0.095 | $0.091 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.084 | $0.073 | $0.062 | $0.052 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | FSM103A | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | SWITCH TACTILE SPST-NO 0.05A 24V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 456616 pcs | Data sheet | FSM103 PB Switch Drawing |
| Category | Switches | Termination Style | PC Pin |
| Switch Travel | 0.30mm | Switch Function | Off-Mom |
| Series | FSM100 ~ 104 | Packaging | Bulk |
| Outline | 12.00mm x 12.00mm | Other Names | 1571627-1 1571627-1-ND |
| Operating Temperature | -35°C ~ 85°C | Operating Force | 260gf |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mechanical Life | 100,000 Cycles | Manufacturer Standard Lead Time | 13 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Illumination Voltage (Nominal) | - | Illumination Type, Color | - |
| Illumination | Non-Illuminated | Features | - |
| Detailed Description | Tactile Switch SPST-NO Top Actuated Through Hole | Contact Rating @ Voltage | 0.05A @ 24VDC |
| Circuit | SPST-NO | Actuator Type | Plunger for Cap |
| Actuator Orientation | Top Actuated | Actuator Material | Acetal |
| Actuator Length, Right Angle | - | Actuator Height off PCB, Vertical | 7.28mm |
