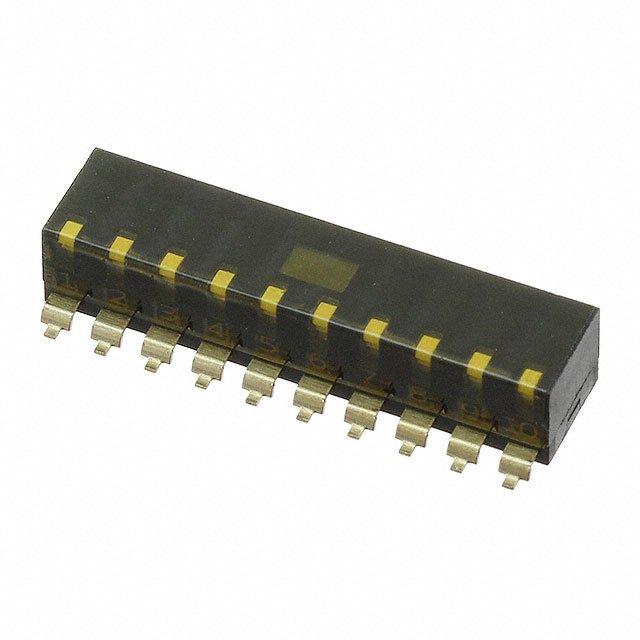

EDSP10SGRNSTU04
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EDSP10SGRNSTU04 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy EDSP10SGRNSTU04 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | EDSP10SGRNSTU04 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | PIANO 10P G SHORT SEAL TUB PD ON |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 18 pcs | 36 pcs | 54 pcs | 108 pcs |
|---|---|---|---|---|---|
| $1.206 | $1.156 | $1.106 | $1.056 | $0.93 | |
| 252 pcs | 504 pcs | 1008 pcs | 5004 pcs | ||
| $0.88 | $0.855 | $0.729 | $0.679 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | EDSP10SGRNSTU04 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | PIANO 10P G SHORT SEAL TUB PD ON | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 57033 pcs | Data sheet | EDSPzzSGzzzzz04 Drawing |
| Category | Switches | Washable | Yes |
| Voltage Rating | 24VDC | Termination Style | Gull Wing |
| Series | EDSP | Pitch | 0.100" (2.54mm), Full |
| Packaging | Tube | Other Names | 2-2319764-5 450-2660 |
| Operating Temperature | -20°C ~ 85°C | Number of Positions | 10 |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mechanical Life | 2,000 Cycles | Manufacturer Standard Lead Time | 9 Weeks |
| Length | 0.996" (25.30mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Above Board | 0.197" (5.00mm) | Features | - |
| Electrical Life | 2,000 Cycles | Detailed Description | Dip Switch SPST 10 Position Surface Mount, Right Angle Piano Actuator 25mA 24VDC |
| Current Rating | 25mA | Contact Material | Copper Alloy |
| Contact Finish | Gold | Circuit | SPST |
| Body Material | Polyamide (PA), Nylon | Actuator Type | Piano |
| Actuator Level | Flush, Recessed |
