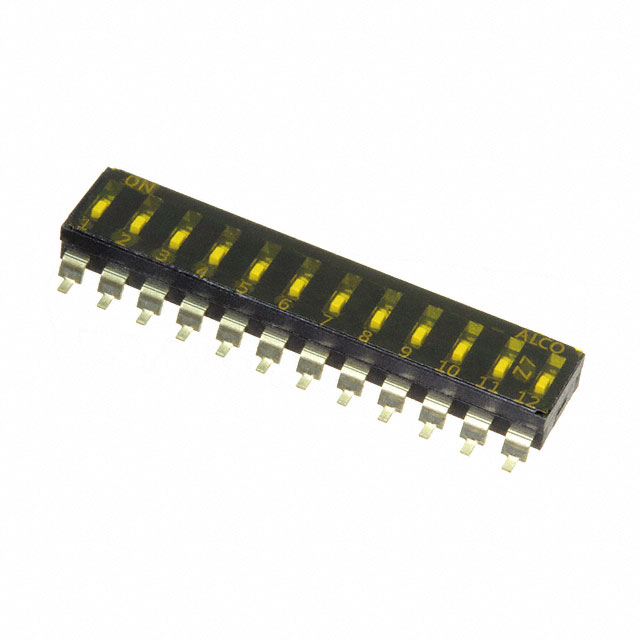

EDS12SGRSTU04Q
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EDS12SGRSTU04Q with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy EDS12SGRSTU04Q with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | EDS12SGRSTU04Q |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | END STACK DIP 12P G RECESS SEAL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 15 pcs | 30 pcs | 60 pcs | 105 pcs |
|---|---|---|---|---|---|
| $0.971 | $0.929 | $0.889 | $0.848 | $0.747 | |
| 255 pcs | 510 pcs | 1005 pcs | 5010 pcs | ||
| $0.707 | $0.687 | $0.586 | $0.545 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | EDS12SGRSTU04Q | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | END STACK DIP 12P G RECESS SEAL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 62835 pcs | Data sheet | EDS,EDSP Series Datasheet |
| Category | Switches | Washable | Yes |
| Voltage Rating | 24VDC | Termination Style | Gull Wing |
| Series | EDS | Pitch | 0.100" (2.54mm), Full |
| Packaging | Tube | Other Names | 3-2319848-2 450-2642 |
| Operating Temperature | -20°C ~ 85°C | Number of Positions | 12 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mechanical Life | 2,000 Cycles | Manufacturer Standard Lead Time | 9 Weeks |
| Length | 1.196" (30.38mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Above Board | 0.134" (3.40mm) | Features | - |
| Electrical Life | 2,000 Cycles | Detailed Description | Dip Switch SPST 12 Position Surface Mount Slide (Standard) Actuator 25mA 24VDC |
| Current Rating | 25mA | Contact Material | Copper Alloy |
| Contact Finish | Gold | Circuit | SPST |
| Body Material | Polyamide (PA), Nylon | Actuator Type | Slide (Standard) |
| Actuator Level | Flush, Recessed |
