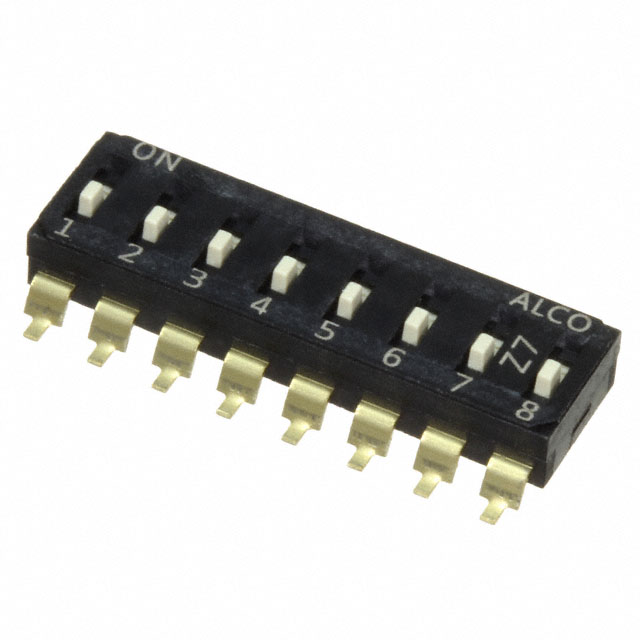

EDS08SGNNTU04Q
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EDS08SGNNTU04Q with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy EDS08SGNNTU04Q with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | EDS08SGNNTU04Q |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | END STACK DIP 8P G RAISED TUBE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 23 pcs | 46 pcs | 69 pcs | 115 pcs |
|---|---|---|---|---|---|
| $0.704 | $0.681 | $0.646 | $0.604 | $0.59 | |
| 253 pcs | 506 pcs | 1012 pcs | 5014 pcs | ||
| $0.506 | $0.492 | $0.421 | $0.386 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | EDS08SGNNTU04Q | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | END STACK DIP 8P G RAISED TUBE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 87679 pcs | Data sheet | EDS,EDSP Series Datasheet |
| Category | Switches | Washable | No |
| Voltage Rating | 24VDC | Termination Style | Gull Wing |
| Series | EDS | Pitch | 0.100" (2.54mm), Full |
| Packaging | Tube | Other Names | 2319847-8 450-2616 |
| Operating Temperature | -20°C ~ 85°C | Number of Positions | 8 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mechanical Life | 2,000 Cycles | Manufacturer Standard Lead Time | 9 Weeks |
| Length | 0.796" (20.22mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Above Board | 0.150" (3.80mm) | Features | - |
| Electrical Life | 2,000 Cycles | Detailed Description | Dip Switch SPST 8 Position Surface Mount Slide (Standard) Actuator 25mA 24VDC |
| Current Rating | 25mA | Contact Material | Copper Alloy |
| Contact Finish | Gold | Circuit | SPST |
| Body Material | Polyamide (PA), Nylon | Actuator Type | Slide (Standard) |
| Actuator Level | Raised |
