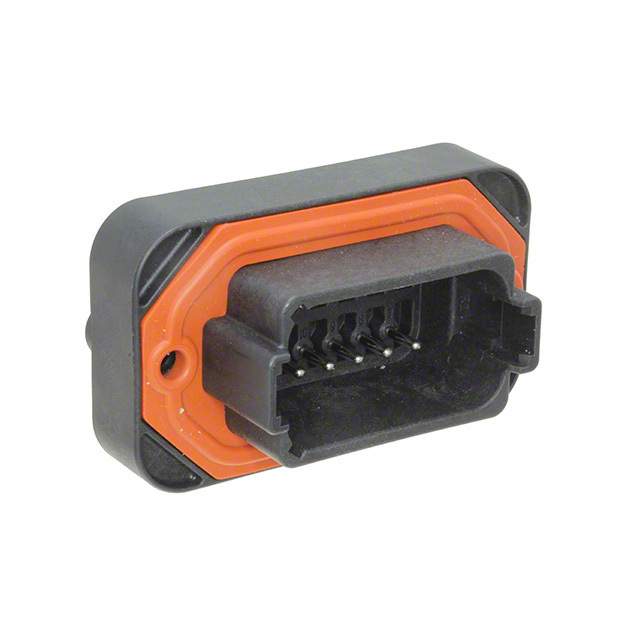

DT13-12PB
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DT13-12PB with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DT13-12PB with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DT13-12PB |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | DT RECP ASM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $4.343 | $3.948 | $3.849 | $3.553 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $3.356 | $3.06 | $2.862 | $2.625 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | DT13-12PB | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | DT RECP ASM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 13749 pcs | Data sheet | DT13-12PA DrawingDT Series Spec SheetDT13-12Px Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 250VDC |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | DT |
| Row Spacing - Mating | 0.250" (6.35mm) | Pitch - Mating | 0.175" (4.44mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 1734-1636 DT13-12PB-ND |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 12 | Mounting Type | Panel Mount, Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | Not Applicable | Material Flammability Rating | - |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA46), Nylon 4/6, Glass Filled |
| Insulation Height | 1.388" (35.26mm) | Insulation Color | Black |
| Ingress Protection | IP68/IP6K9K | Features | Mounting Flange |
| Fastening Type | Latch Holder | Detailed Description | Connector Header Panel Mount, Through Hole, Right Angle 12 position 0.175" (4.44mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Circular | Contact Material | Copper Alloy |
| Contact Length - Post | 0.122" (3.10mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Nickel |
| Connector Type | Header | Applications | Automotive |
