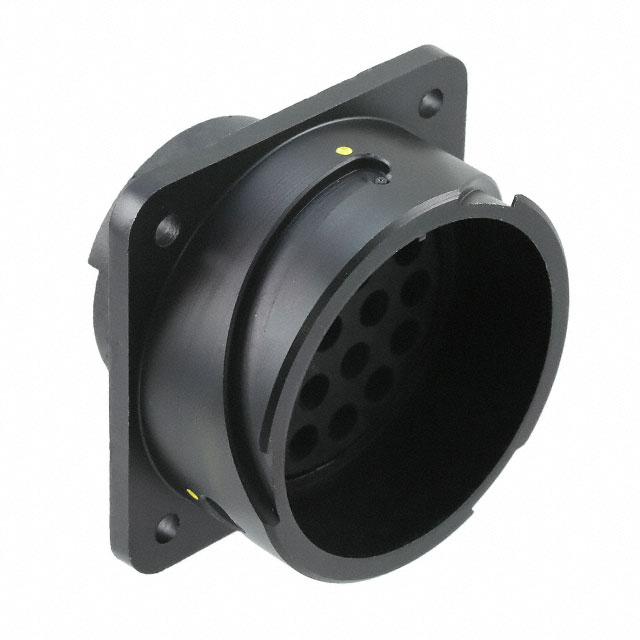

CIRP03T36A22PV0N
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CIRP03T36A22PV0N with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CIRP03T36A22PV0N with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CIRP03T36A22PV0N |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN RCPT HSNG MALE 22POS PNL MT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $21.142 | $19.899 | $19.277 | $18.033 | $17.038 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | CIRP03T36A22PV0N | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN RCPT HSNG MALE 22POS PNL MT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2061 pcs | Data sheet | CIRP Series Datasheet |
| Category | Connectors, Interconnects | Type | For Male Pins |
| Shielding | Unshielded | Shell Size, MIL | - |
| Shell Size - Insert | 36-A22 | Shell Material | Aluminum Alloy |
| Shell Finish | Chromate over Zinc Cobalt | Series | CIRP |
| Packaging | Bulk | Other Names | A124810 Y5015-000000008779 |
| Orientation | N (Normal) | Operating Temperature | -45°C ~ 125°C |
| Number of Positions | 22 | Note | Contacts Not Included |
| Mounting Type | Panel Mount | Mounting Feature | Flange |
| Material Flammability Rating | - | Manufacturer Standard Lead Time | 21 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insert Material | Thermoplastic |
| Ingress Protection | IP67 - Dust Tight, Waterproof | Includes | - |
| Housing Color | Black | Features | - |
| Fastening Type | Reverse Bayonet Lock | Detailed Description | 22 Position Circular Connector Receptacle Housing Panel Mount |
| Coupling Nut Material, Plating | - | Coupling Nut Diameter | - |
| Contact Type | Crimp | Contact Size | 12 |
| Contact Shape | Circular | Connector Type | Receptacle Housing |
