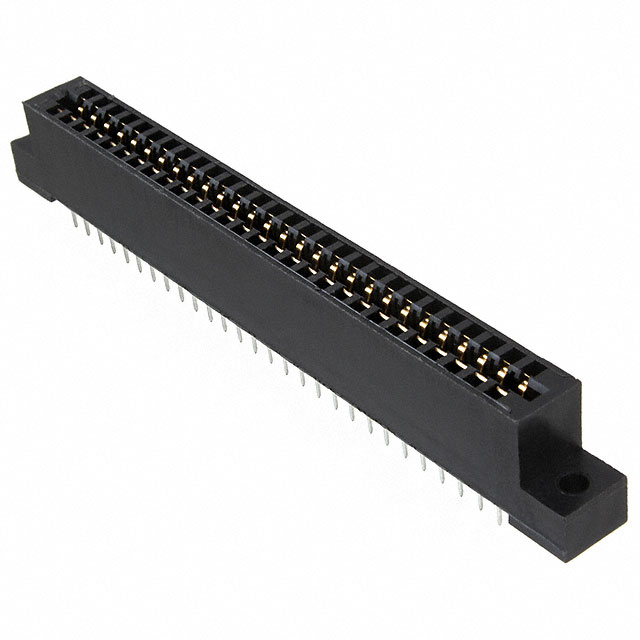

C7D28DS29D1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy C7D28DS29D1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy C7D28DS29D1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | C7D28DS29D1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN EDGE DUAL FMALE 56POS 0.125 |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $3.348 | $3.201 | $2.91 | $2.765 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.692 | $2.401 | $2.255 | $1.993 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | C7D28DS29D1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN EDGE DUAL FMALE 56POS 0.125 | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 18651 pcs | Data sheet | 1437274 Drawing |
| Category | Connectors, Interconnects | Termination | Solder |
| Series | C7 - DS | Read Out | Dual |
| Pitch | 0.125" (3.18mm) | Packaging | Bulk |
| Other Names | 1-1437274-9 1-1437274-9-ND A111873 |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions/Bay/Row | - |
| Number of Positions | 56 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Insulation | Thermoplastic, Glass Filled |
| Manufacturer Standard Lead Time | 13 Weeks | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Gender | Female | Flange Feature | Flush Mount, Top Opening, Unthreaded, 0.125" (3.18mm) Dia |
| Features | - | Contact Type | Cantilever |
| Contact Material | Copper Alloy | Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Finish | Gold | Color | Black |
| Card Type | Non Specified - Dual Edge | Card Thickness | 0.054" ~ 0.071" (1.37mm ~ 1.80mm) |
