ASE22

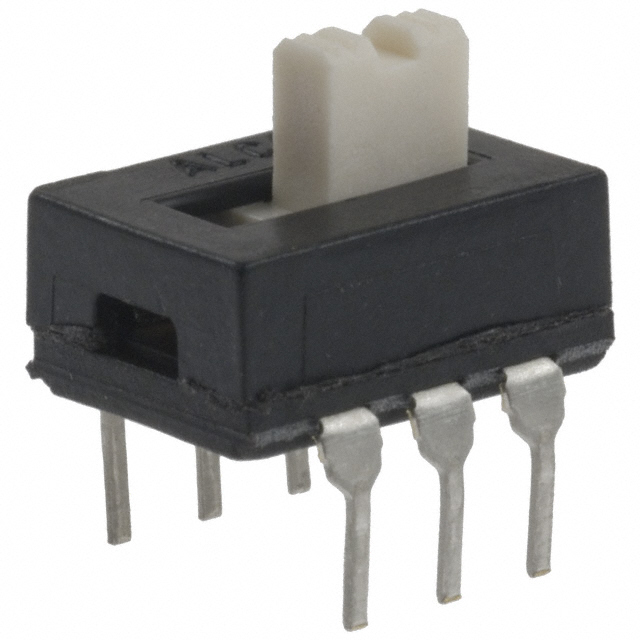

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ASE22 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ASE22 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ASE22 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | SWITCH SLIDE DPDT 300MA 115V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1020 pcs | ||||
|---|---|---|---|---|---|
| $1.959 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | ASE22 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | SWITCH SLIDE DPDT 300MA 115V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 16679 pcs | Data sheet | ASE/ASF Drawing |
| Category | Switches | Voltage Rating - AC | 115V |
| Termination Style | PC Pin | Switch Travel | 2.79mm |
| Switch Function | On-On | Series | ASE |
| Packaging | Bulk | Other Names | 1437581-2 |
| Operating Temperature | -40°C ~ 80°C | Operating Force | 950gf |
| Mounting Type | Through Hole | Mechanical Life | 15,000 Cycles |
| Manufacturer Standard Lead Time | 5 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | - | Electrical Life | 15,000 Cycles |
| Detailed Description | Slide Switch DPDT Through Hole | Current Rating | 300mA (AC) |
| Contact Timing | Shorting (MBB) | Contact Material | Copper Alloy |
| Contact Finish | Silver | Circuit | DPDT |
| Actuator Type | Standard | Actuator Material | Polyamide (PA46), Nylon 4/6 |
| Actuator Length | 2.79mm |
